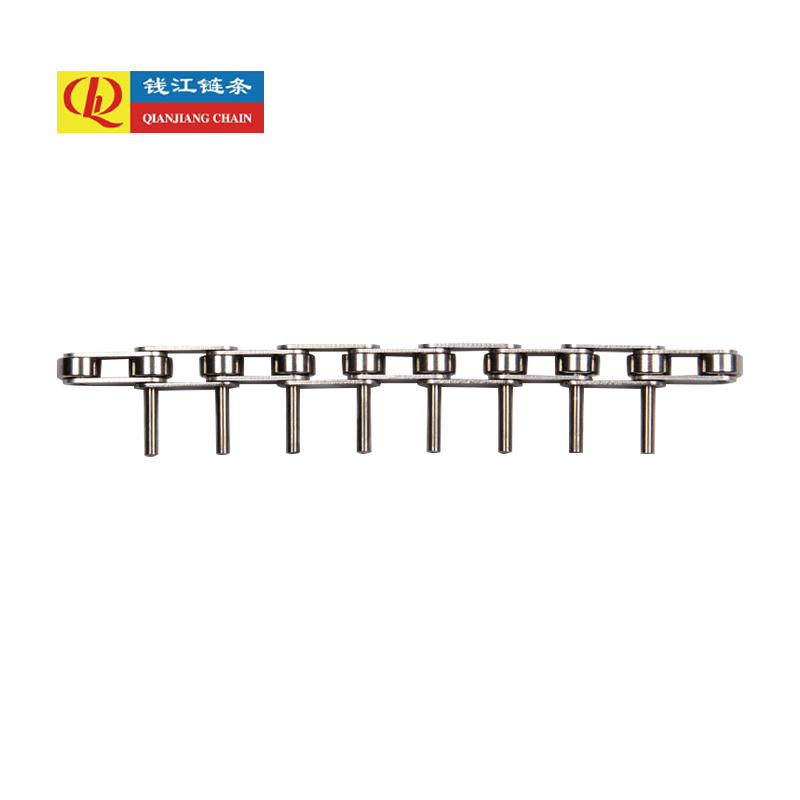

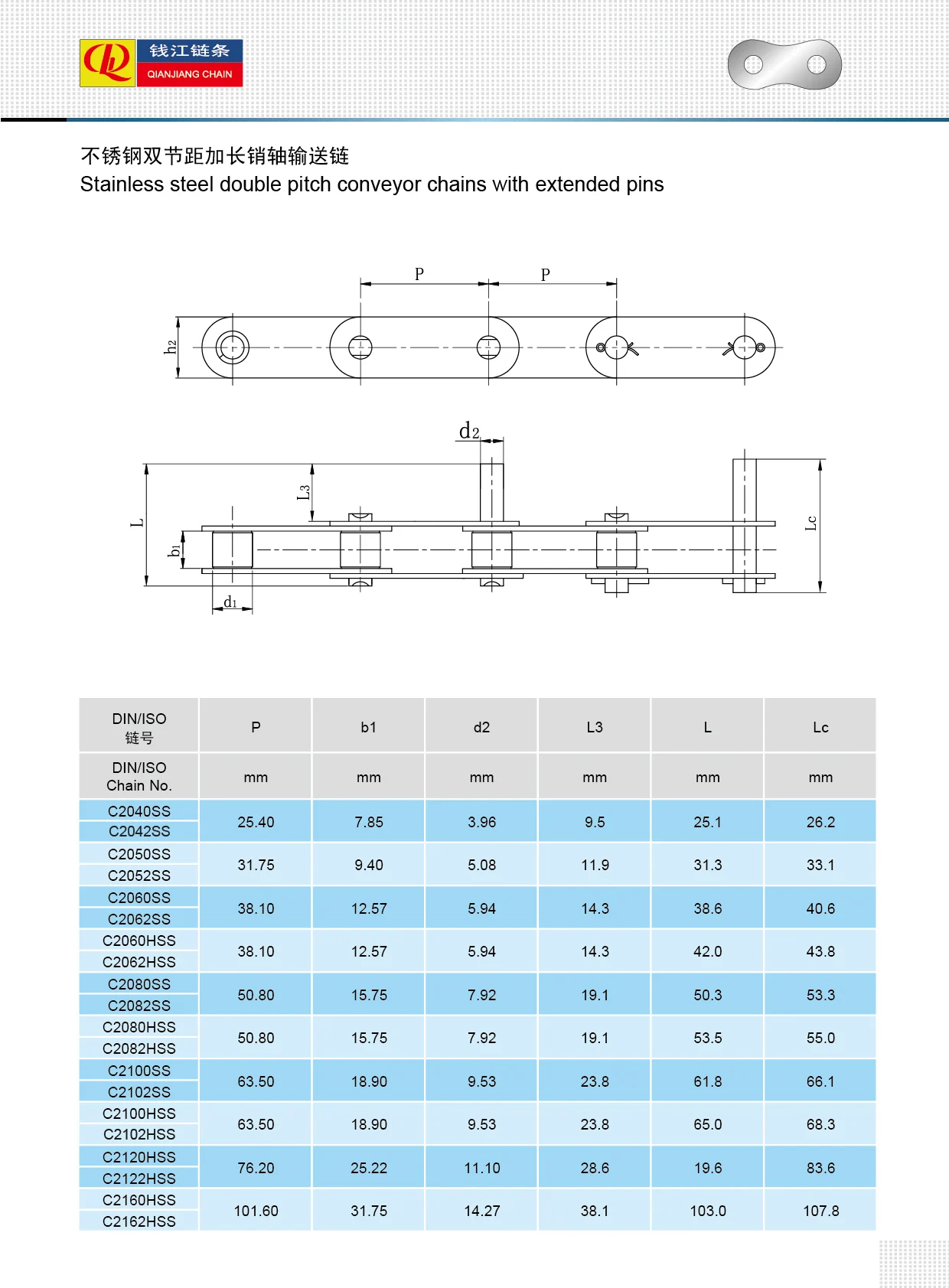

Stainless steel double pitch conveyor chains with extended pins

Stainless steel double pitch conveyor chains with extended pins

Hangzhou qianjiang chain industries Co.,Ltd.

0
Views: 140

Product Details

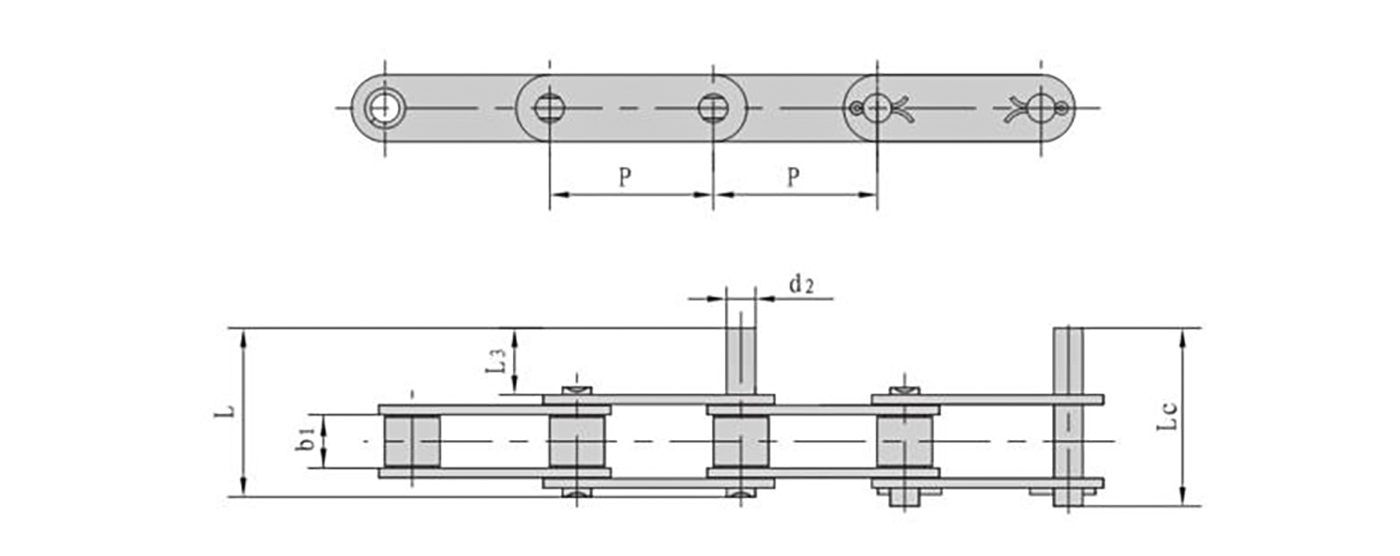

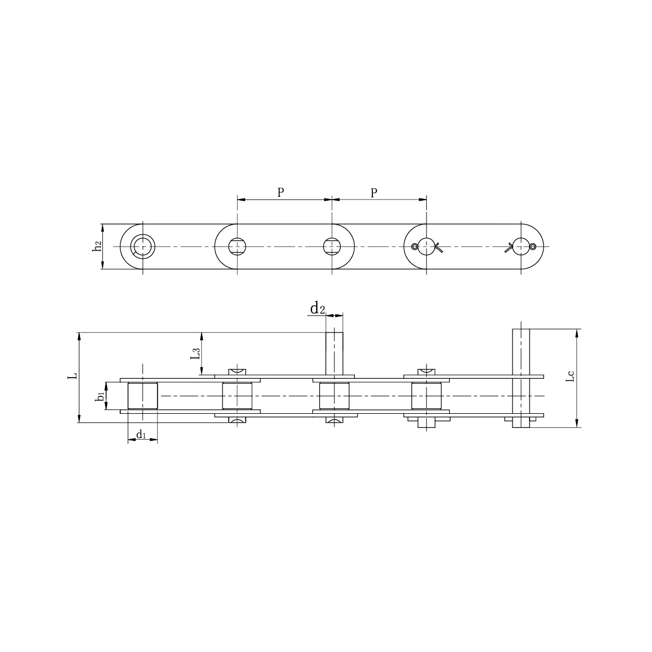

                    DIN/ISO                      Chain No.

P

b1

d2

L3

L

Lc

mm

mm

mm

mm

mm

mm

C2040SS
C2042SS

25.40

7.85

3.96

9.5

25.1

26.2

C2050SS
C2052SS

31.75

9.40

5.08

11.9

31.3

33.1

C2060SS
C2062SS

38.10

12.57

5.94

14.3

38.6

40.6

C2060HSS
C2062HSS

38.10

12.57

5.94

14.3

42.0

43.8

C2080SS
C2082SS

50.80

15. 75

7.92

19.1

50.3

53.3

C2080HSS
C2082HSS

50.80

15.75

7.92

19.1

53.5

55.0

C2100SS
C2102SS

63.50

18.90

9.53

23.8

61.8

66.1

C2100HSS
C2102HSS

63.50

18.90

9.53

23.8

65.0

68.3

C2120HSS
C2122HSS

76.20

25. 22

11.10

28.6

19.6

83.6

C2160HSS
C2162HSS

101.60

31.75

14.27

38.1

103.0

107.8

Bush chain: d1 in the table indicates the extermal diameter of the bush
