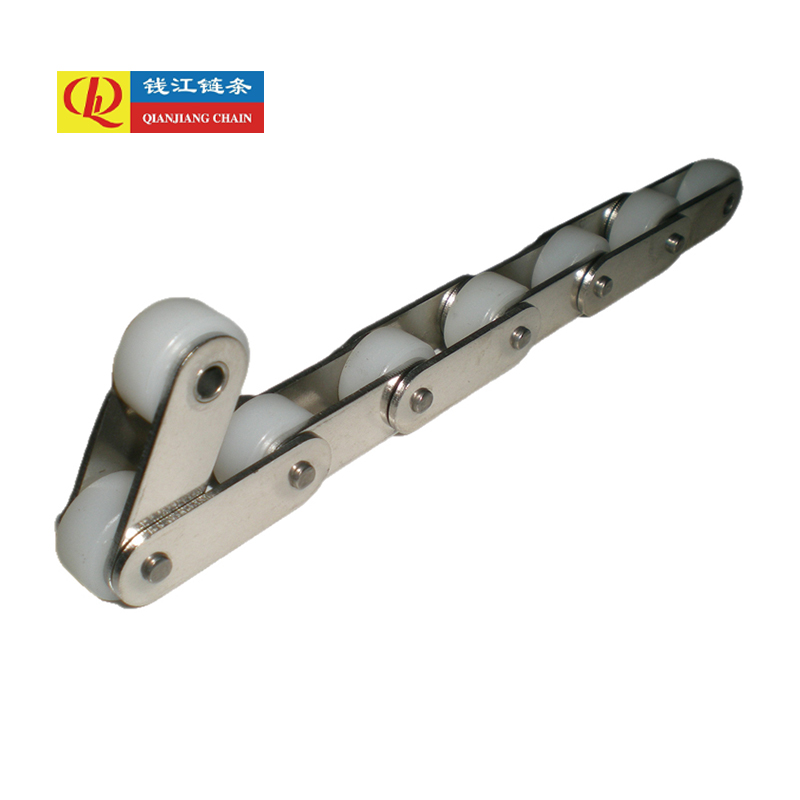

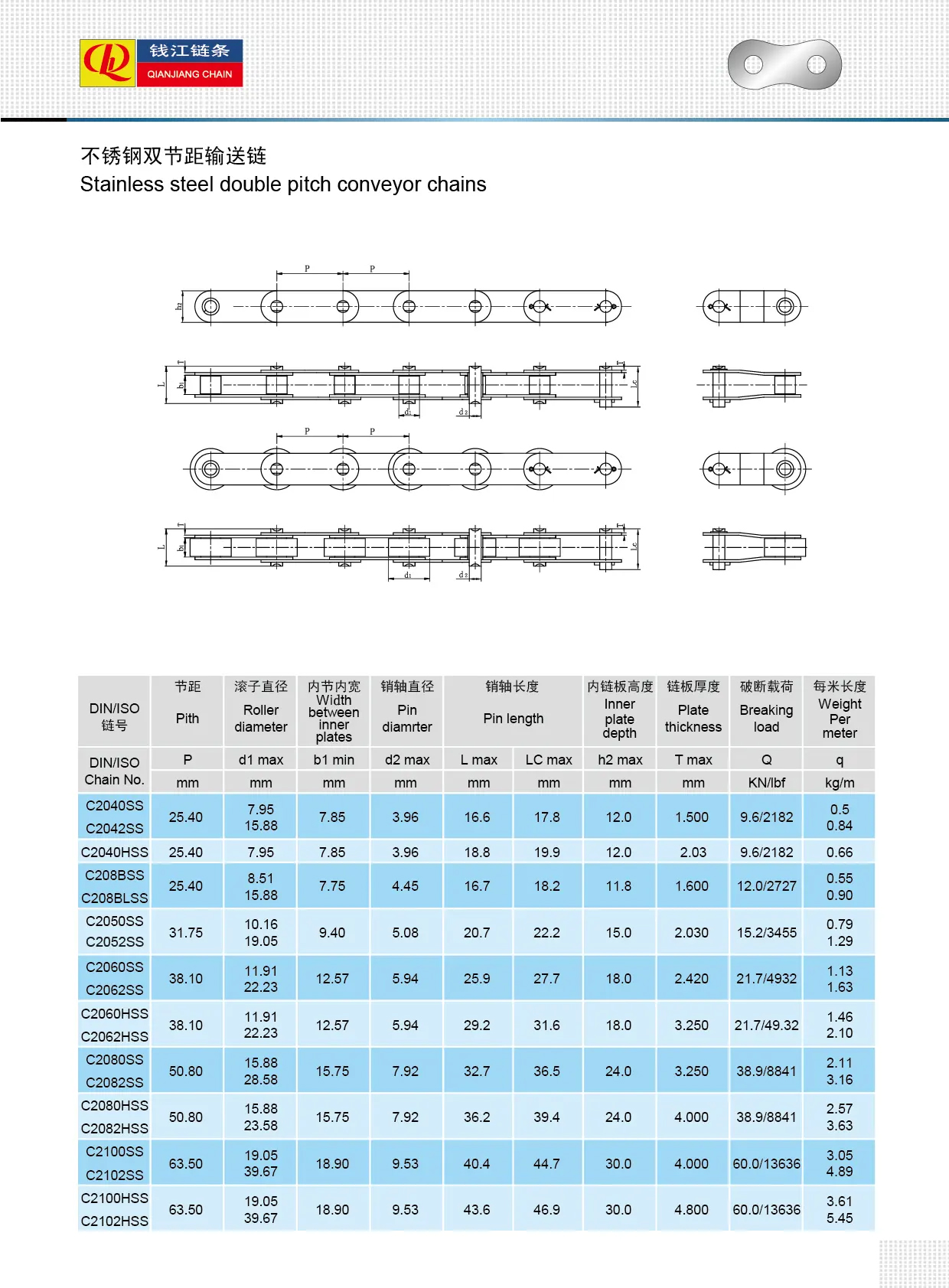

Stainless steel double pitch conveyor chains

Stainless steel double pitch conveyor chains

Hangzhou qianjiang chain industries Co.,Ltd.

0
Views: 2,141

Product Details

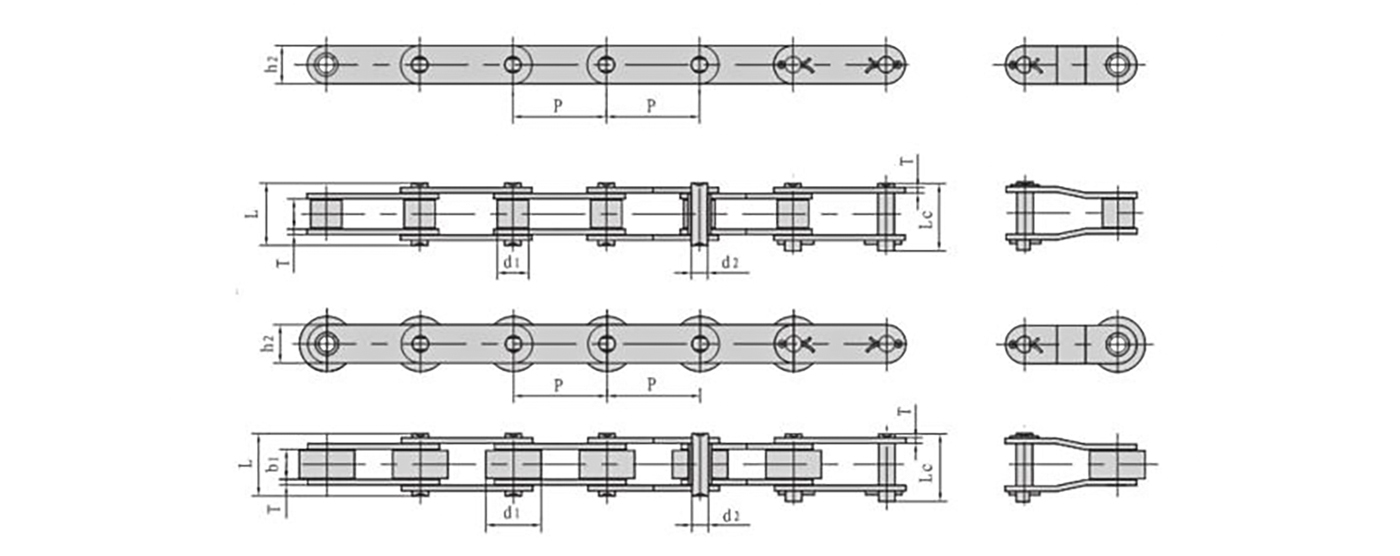

        DIN/ISO           Chain NO.



Pith

  Roller diameter

Width
between
inner
plates

Pin
diamrter

Pin length

Inner
plate
depth

  Plate
thickness

Breaking
load

Weight
Per
meter

P

d1 max

b1 min

d2 min

L max

LC max

h2 max

T max

q

mm

mm

mm

mm

mm

mm

mm

mm

KN/Ibf

kg/m

C2040SS
C2042SS

25.40

          7.95             15.88

7.85

3.96

16.6

17.8

12.0

1.500

9.6/2182

0.5
0.84

C2040HSS

25.40

7.95

7.85

3.96

18.8

19.9

12.0

2.03

9.6/2182

0.66

C208BSS
C208BLSS

25.40

           8.51             15.88

7.75

4.45

16.7

18.2

11.8

1.600

12.0/2727

0.55
0.90

C2050SS
C2052SS

31.75

10.16
19.05

9.40

5.08

20.7

22.2

15.0

2.030

15.2/3455

0.79
1.29

C2060SS
C2062SS

38.10

11.91
22.23

12.57

5.94

25.9

27.7

18.0

2.420

21.7/49.32

1.13
1.63

C2060HSS
C2062HSS

38.10

11.91
22.23

12.57

5.94

29.2

31.6

18.0

3.250

21.7/49.32

1.46
2.10

C2080SS
C2082SS

50.80

15.88
28.58

15.75

7.92

32.7

36.5

24.0

3.250

38.9/8841

2.11
3.16

C2080HSS
C2082HSS

50.80

15.88
23.58

15.75

7.92

36.2

39.4

24.0

4.000

38.9/8841

2.57
3.63

C2100SS
C2102SS

63.50

19.05
39.67

18.90

9.53

40.4

44.7

30.0

4.000

60.0/13636

3.05
4.89

C2120HSS
C2102HSS

63.50

19.05
39.67

18.90

9.53

43.6

46.9

30.0

4.800

60.0/13636

3.61
5.45
