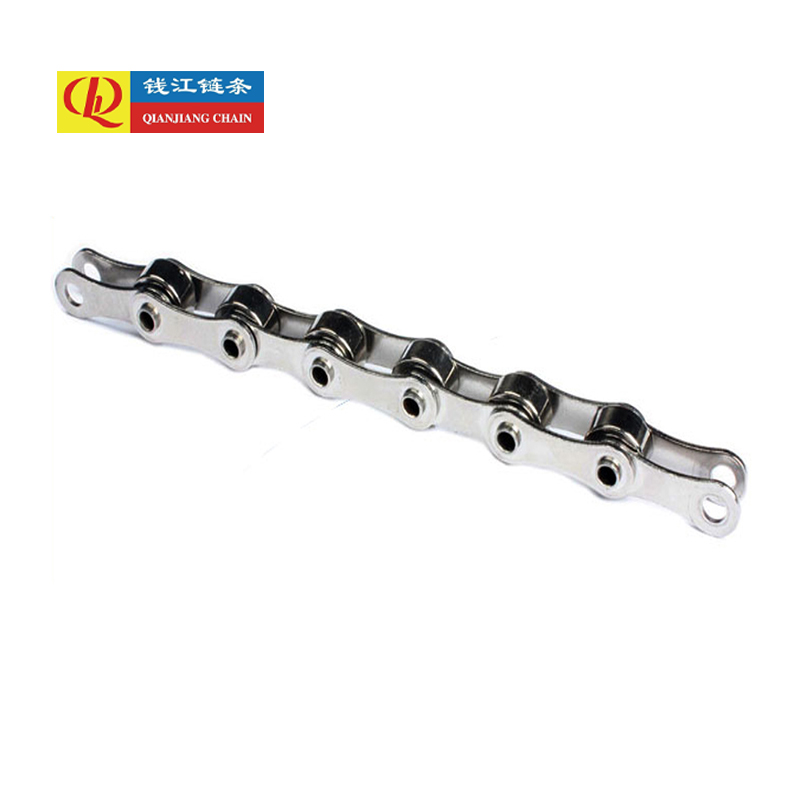

Stainless steel hollow pin chains

Stainless steel hollow pin chains

Hangzhou qianjiang chain industries Co.,Ltd.

0
Views: 2,197

Product Details

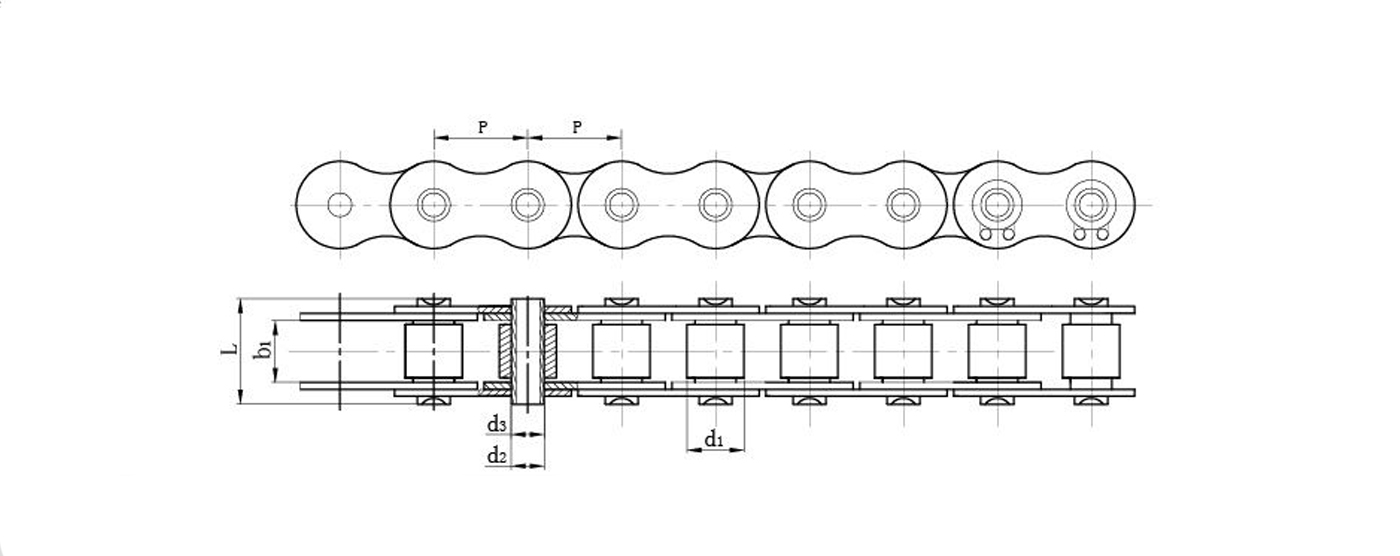

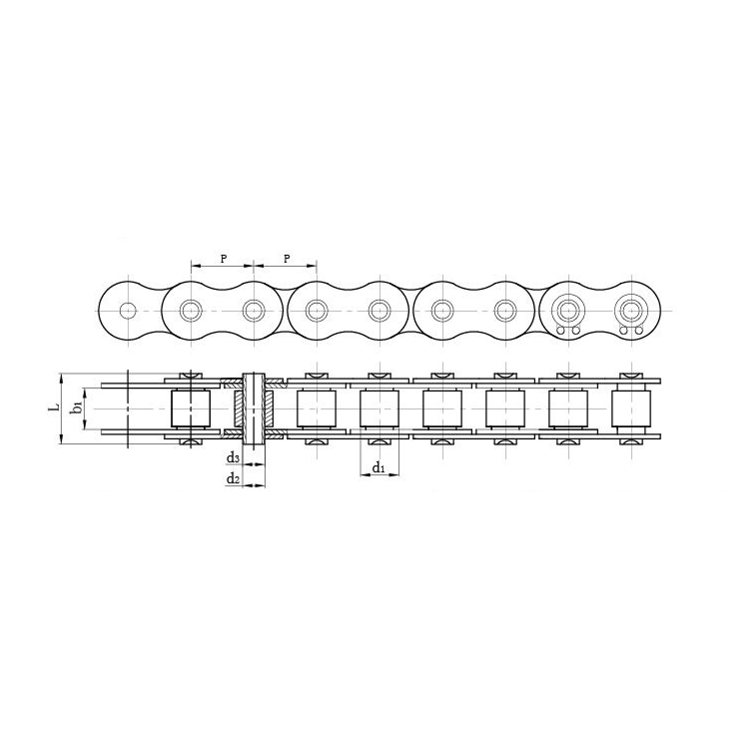

Chain No.  Pith        Bush       diameter        Width         between           inner     plates    Pin  diameter Pin length          Inner                plate              depth       Plate   thickness           Ultimate                     tensile          strength   Average  lensile  strength  Weight        per          meter
P d1 max b1 min d2 max d3 min L max LC max h2 max t/T max Q min Q0 q
mm mm mm mm mm mm mm mm mm kN kN kg/m
08BHPF 12.70  8.51  7.75  6.55  4.50  16.40  17.60  11.80  1.6/1.3 6.66  7.26  0.56
40HP 12.70  7.95  7.85  5.63  4.00  16.50  17.60  12.00  1.50  6.60  7.32  0.54
50HP 15.88  10.16  9.40  7.03  5.13  20.70  21.90  15.09  2.03  12.00  13.56  0.91
60HP 19.05  11.91  12.70  8.31  6.00  25.80  26.80  18.00  2.42  14.40  16.14  1.29
60HPF1 19.05  11.91  12.70  8.31  5.01  25.50  26.80  18.00  2.42  16.80  18.54  1.37
80HP 25.40  15.88  15.75  11.40  8.05  32.50  33.80  24.00  3.25  30.00  34.98  2.26

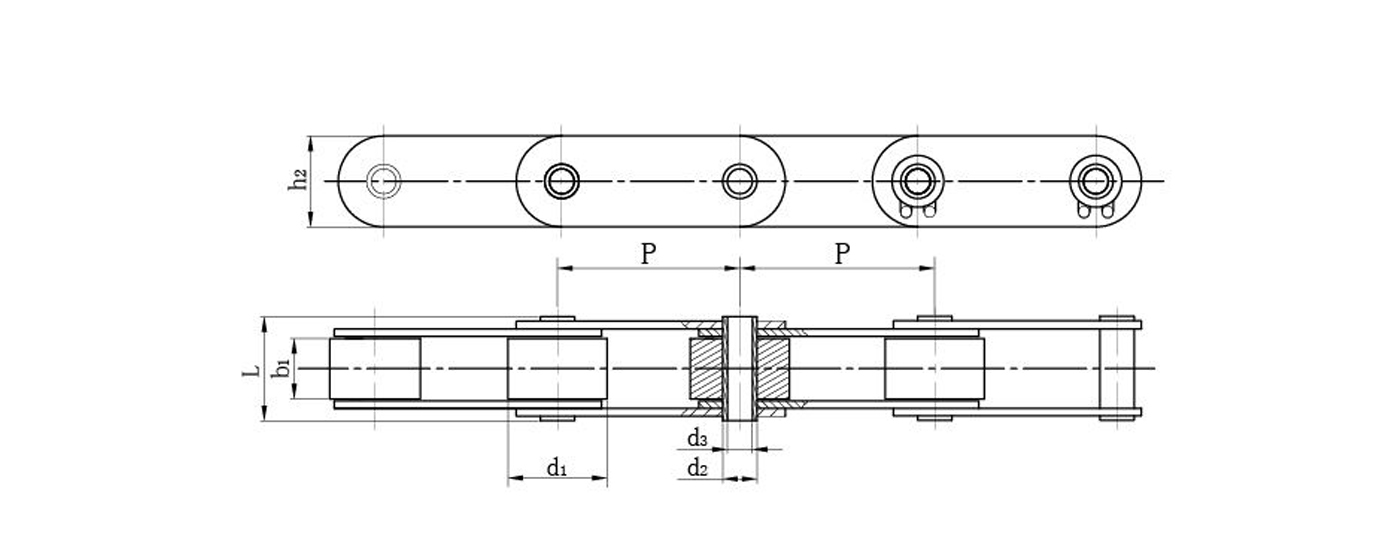

Chain No.  Pith         Bush         diameter Width    between            inner         plates    Pin  diameter Pin length         inner            plate       depth       Plate   thickness            Ultimate                       tensile              strength   Average tensile  strength  Weight        per          meter
P d1 max b1 min d2 max d3 min L max LC max h2 max t/T max Q min Q0 q
mm mm mm mm mm mm mm mm mm KN KN kg/m
C2042HP 25.4 15.88 7.85  5.63  4.00  16.50  17.60  12.00  1.50  6.60  7.56  0.78
C2052HP 31.75 19.05 9.53  7.22  5.12  20.50  21.80  15.00  2.03  12.24  13.68  1.25
C2062HP 38.1 22.23 12.70  8.31  6.00  25.80  26.80  17.00  2.42  14.40  16.26  1.72
C2082HP 50.8 28.58 15.75  11.40  8.05  32.40  33.80  24.00  3.25  30.00  33.12  2.82
C2052HPF1 31.75 19.05 9.40  7.03  5.12  20.00  21.50  15.30  1.85  9.00  10.38  1.21
C2042H-HP 25.4 15.88 7.85  5.62  4.00  18.80  19.90  12.00  2.03  6.60  7.92  0.95
C2052H-HP 31.750  19.05 9.53  7.22  5.12  22.10  23.40  15.00  2.42  12.24  14.10  1.44
C2062H-HP  38.100  22.23 12.70  8.31  6.00  29.20  30.20  17.00  3.25  14.40  16.56  1.99
C2082H-HP  50.800  28.58 15.75  11.40  8.05  36.20  37.60  24.00  4.00  30.00  33.90  3.26
