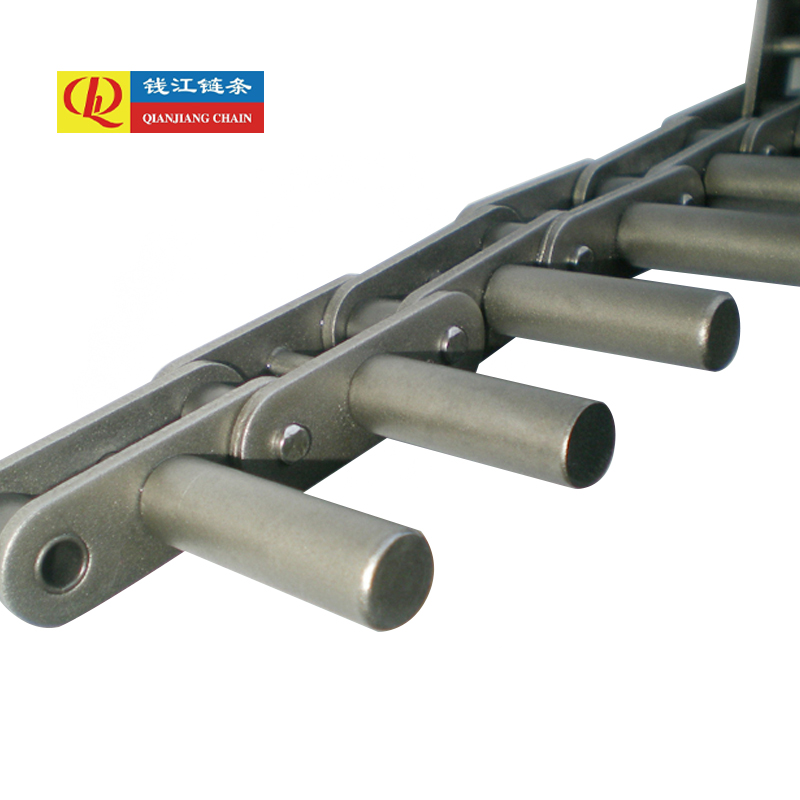

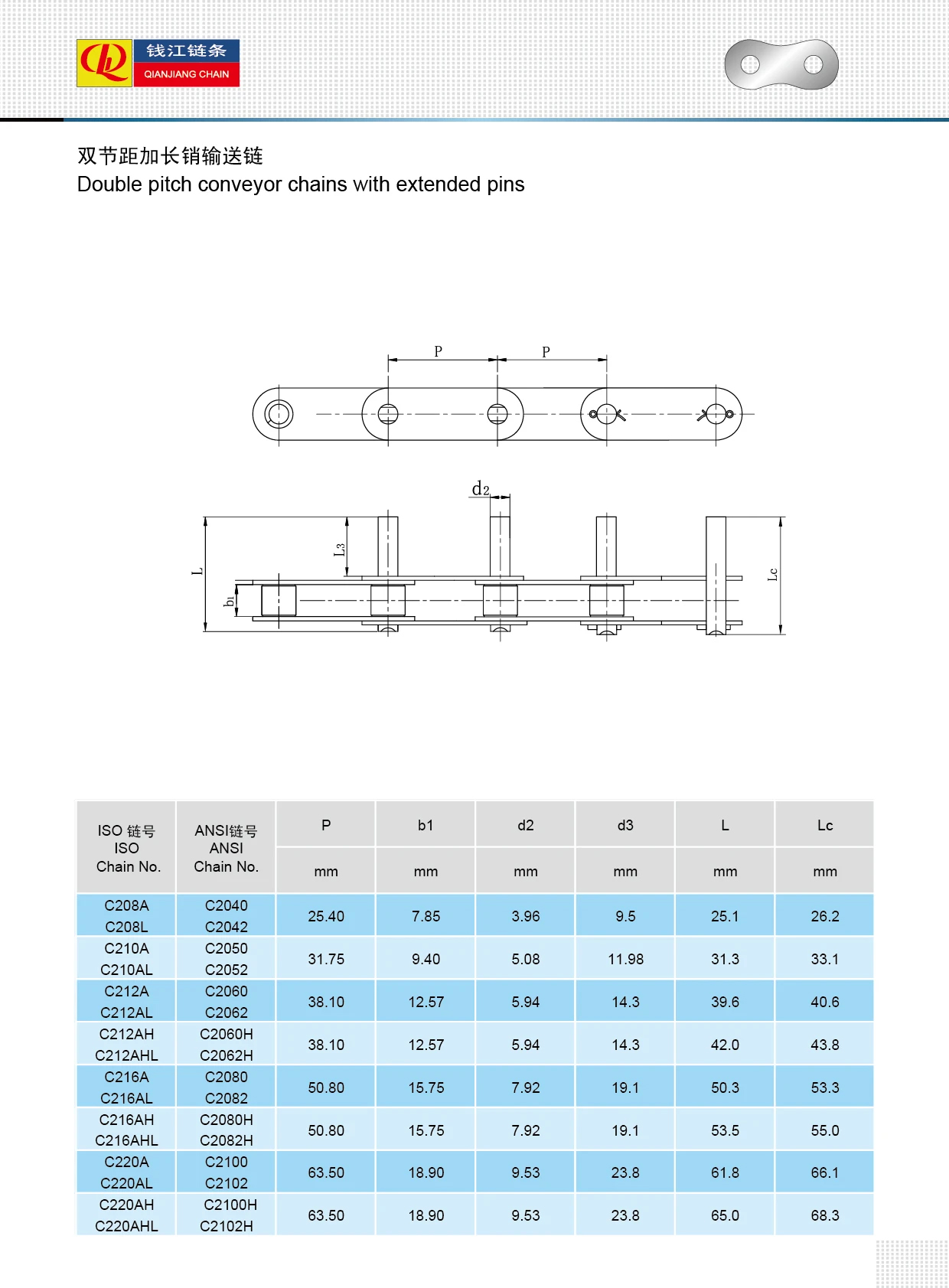

Double pitch conveyor chains with extended pins

Double pitch conveyor chains with extended pins

Hangzhou qianjiang chain industries Co.,Ltd.

0
Views: 2,296

Product Details

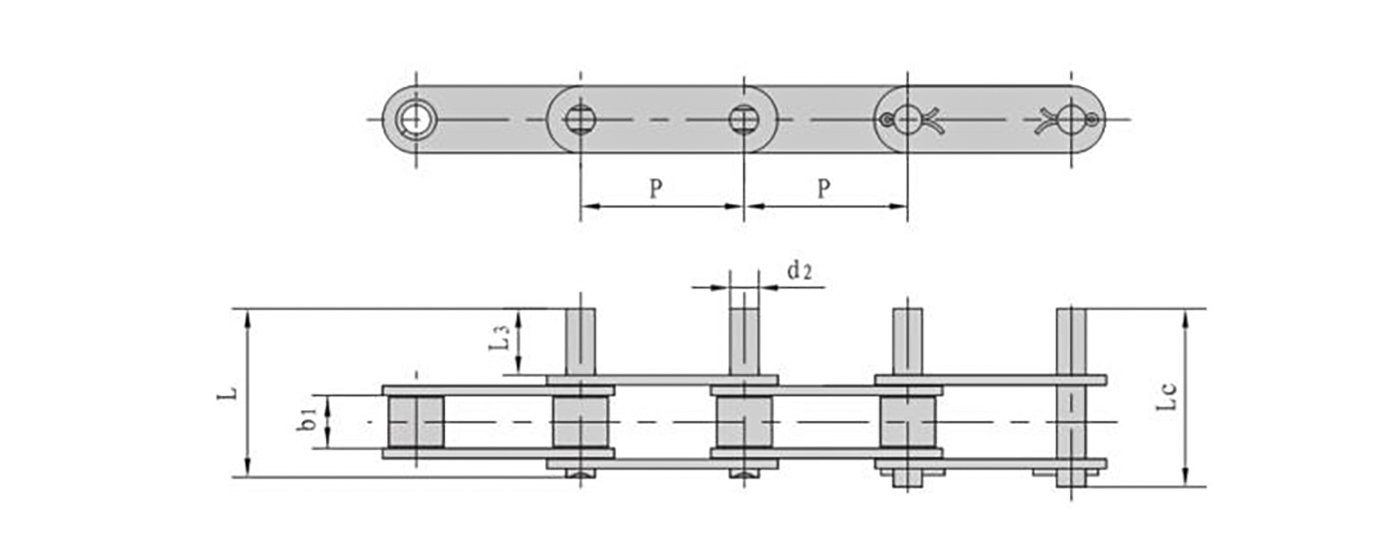

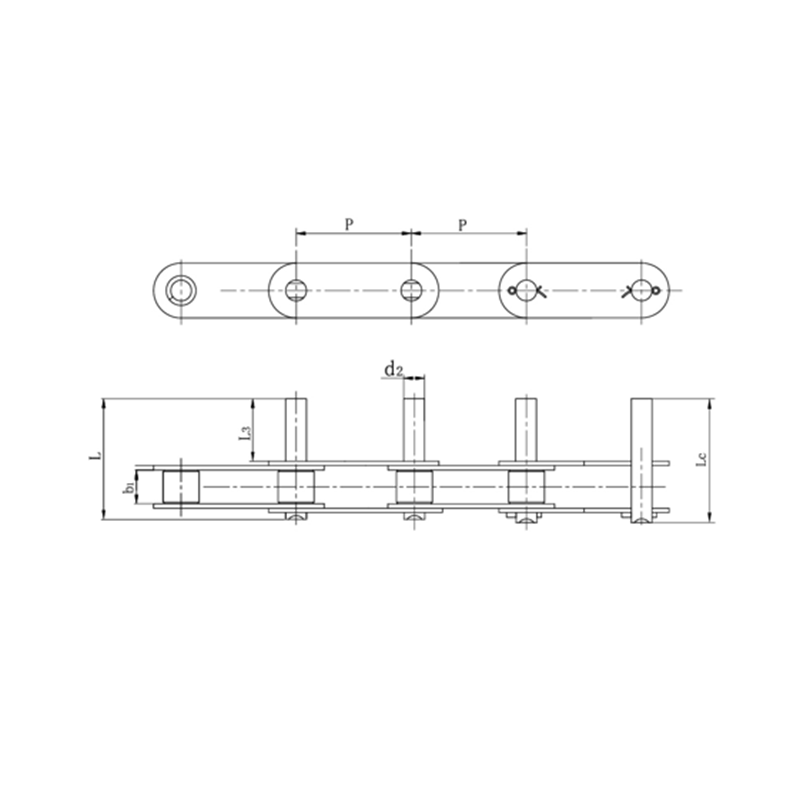

           ISO             Chain No.               ANSI                 Chain No. P b1 d2 d3 L Lc
mm mm mm mm mm mm
C208A C2040 25.40  7.85  3.96 9.5 25.1  26.2
C208L C2042
C210A C2050 31.75  9.40  5.08 11.98 31.3  33.1
C210AL C2052
C212A C2060 38.10  12.57  5.94 14.3 39.6  40.6
C212AL C2062
C212AH C2060H 38.10  12.57  5.94 14.3 42.0  43.8
C212AHL C2062H
C216A C2080 50.80  15.75  7.92 19.1 50.3  53.3
C216AL C2082
C216AH C2080H 50.80  15.75  7.92 19.1 53.5  55.0
C216AHL C2082H
C220A C2100 63.50  18.90  9.53 23.8 61.8  66.1
C220AL C2102
C220AH C2100H 63.50  18.90  9.53 23.8 65.0  68.3
C220AHL C2102H

Bush chain: d1 in the table indicates the extermal diameter of the bush
