Double pitch conveyor chains

Double pitch conveyor chains

Hangzhou qianjiang chain industries Co.,Ltd.

0
Views: 2,803

Product Details

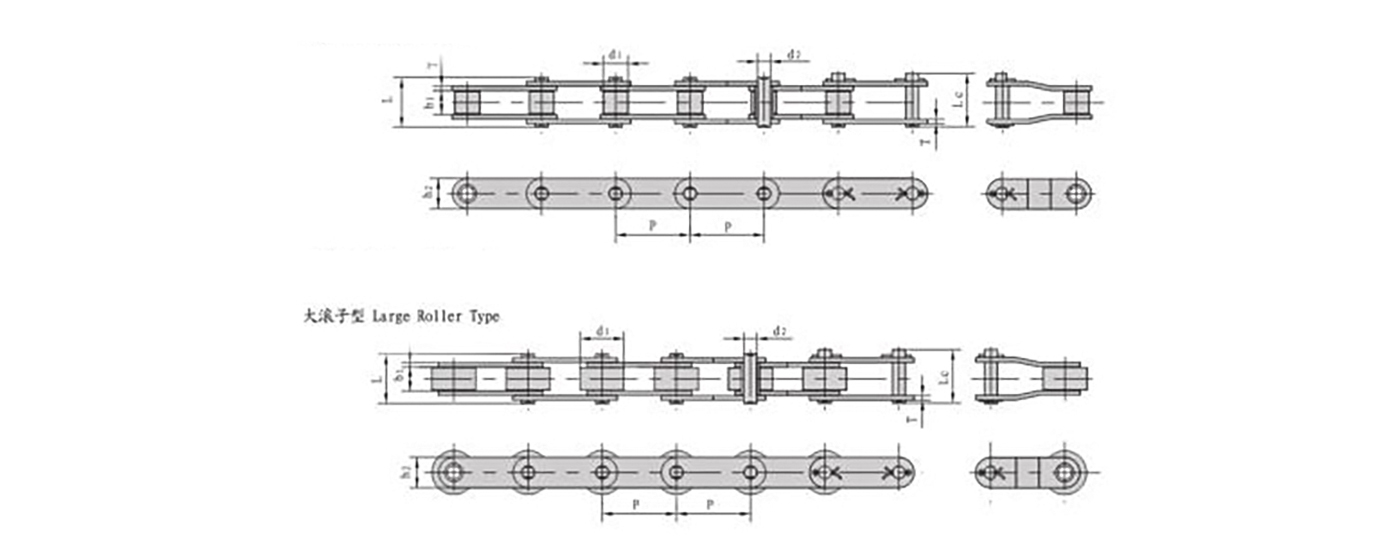

DIN/ISO  Chain No

   ANSI          Chain No.

Pith

Roller diameter

   Width       between       inner      plates

   Pin       diameter

Pin length

     Inner              plate            depth

Plate  thickness

        Ultimate                    tensile           strength

Average  tensile  strength

    Weight           per               meter

P

d1(max)

b1 min

d2 max

L max

Lc max

h2(max)

T max

Q(min)

Q0

q

mm

mm

mm

mm

mm

mm

mm

mm

kN/lbf

kN

kg/m

C208A
C208AL

C2040
C2042

25.40

 7.95     15.88

7.85

3.96

16.6

17.8

12.0

1.50

14.1/3205

16.7

0.54
0.84

C208AH

C2040H

25.40

7.95

7.85

3.96

18.80

19.9

12.0

2.00

14.1/3205

17.2

0.65

C208B   C208BL



25.40

      8.51        15.88

7.75

4.45

16.7

18.2

11.8

1.60

18.0/4091

19.4

0.55
0.98

C210A    C210AL

C2050
C2052

31.75

     10.16       19.05

9.40

5.08

20.7

22.2

15.0

2.00

22.2/5045

28.1

0.78
1.27

C210AH

C2050H

31.75

10.16

9.40

5.08

22.1

23.4

15.0

2.40

22.2/5045

28.1

0.94

C210AHL

C2052H

31.75

19.05

9.40

5.08

22.1

23.4

15.0

2.40

22.2/5045

28.1

1.45

C212A     C212AL

C2060
C2062

38.10

       11.91        22.23

12.57

5.94

25.9

27.7

18.0

2.40

31.8/7227

36.8

1.12
1.61

C212AH   C212AHL

C2060H
C2062H

38.10

      11.91        22.23

12.57

5.94

29.2

31.6

18.0

3.25

31.8/7227

41.6

1.44
2.07

C216A   C216AL

C2080
C2082

50.80

   15.88      28.58

15.75

7.92

32.7

36.5

24.0

3.25

56.7/12886

65.7

2.08
3.12

C216AH   C216AHL

C2080H
C2082H

50.80

   15.88      28.58

15.75

7.92

36.2

39.4

24.0

4.00

56.7/12886

70.0

2.54
3.58

C220A  C220AL

C2100
C2102

63.50

 19.05    39.57

18.90

9.53

40.4

44.7

30.0

4.00

88.5/20114

102.6

3.01
4.83

C220AH   C220AHL

C2100H
C2102H

63.50

 19.05    39.67

18.90

9.53

43.6

46.9

30.0

4.00

88.5/20114

112.4

3.56
5.38

Bush chain: d1 in the table indicates the extermal diameter of the bush
