Double pitch conveyor chains attachments 1

Double pitch conveyor chains attachments 1

Hangzhou qianjiang chain industries Co.,Ltd.

0
Views: 264

Product Details

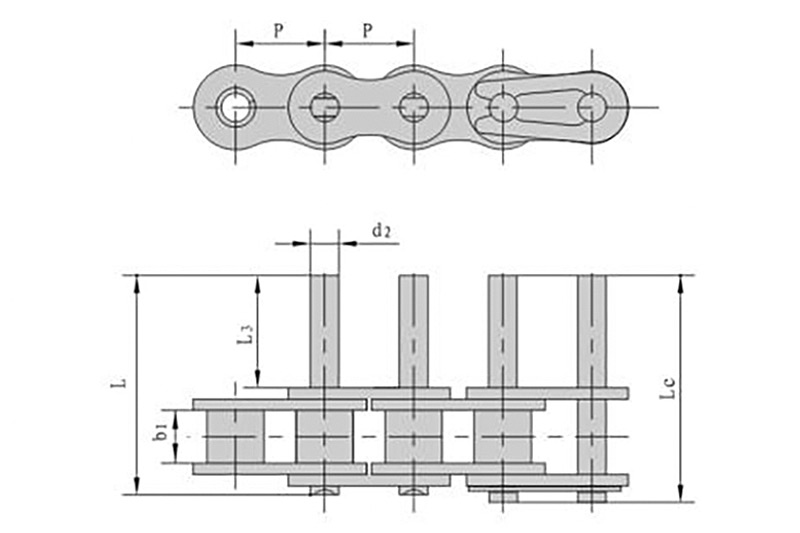

 ISO

Chain No.



       ANSI          Chain No.



P

G

L

F

W

h4

d4

mm

mm

mm

mm

mm

mm

mm

C208A
C208L

C2040
C2042

25.40

19.1

9.5

25.4

39.6

9.1

3.4

       C208B           C208BL



25.40

23.2

12.7

25.4

39.6

9.1

4.5

      C210A          C210AL

C2050
C2052

31.75

23.8

11.9

31.8

49.0

11.1

5.5

        C212A            C212AL

C2060
C2062

38.10

28.6

14.3

42.9

67.8

14.7

5.5

    C212AH       C212AHL

C2060H
C2062H

38.10

28.6

14.3

42.9

67.8

14.7

5.5

     C216A         C216AL

C2080
C2082

50.80

38.1

19.1

55.6

87.8

19.1

6.8

    C216AH        C216AHL

C2080H
C2082H

50.80

38.1

19.1

55.6

87.8

19.1

6.8

     C220A          C220AL

C2100
C2102

63.50

47.6

23.8

66.6

107.5

23.4

9.2

    C220AH        C220AHL

C2100H
C2102H

63.5

47.6

23.8

66.6

107.5

23.4

9.2

Bush chain: d1 in the table indicates the extermal diameter of the bush
