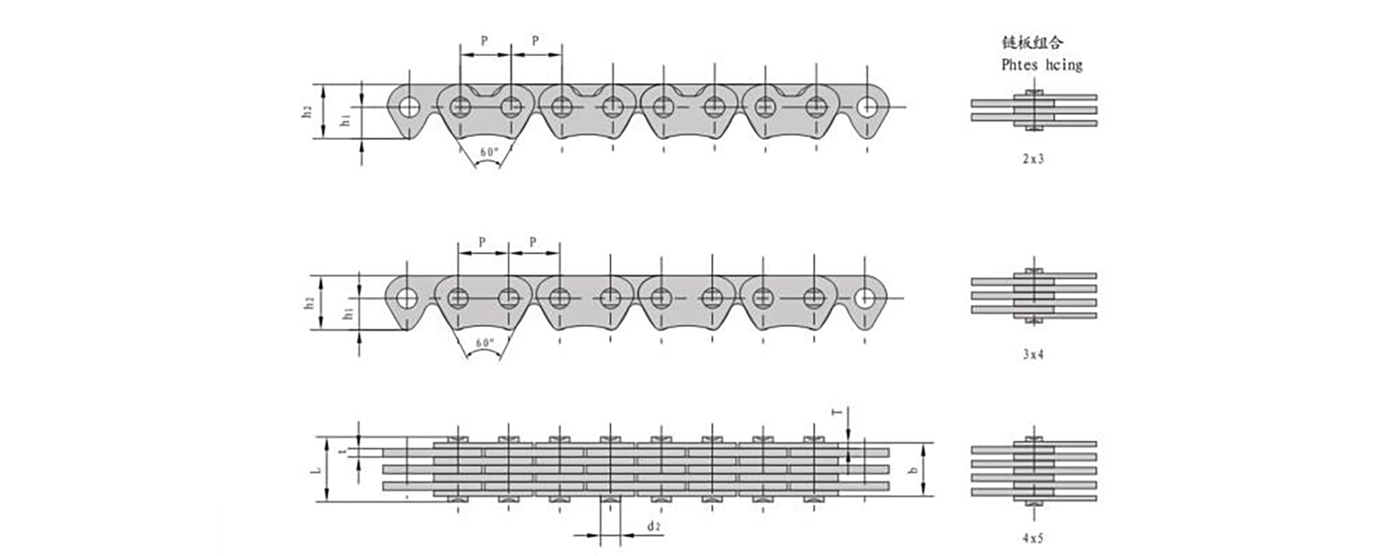

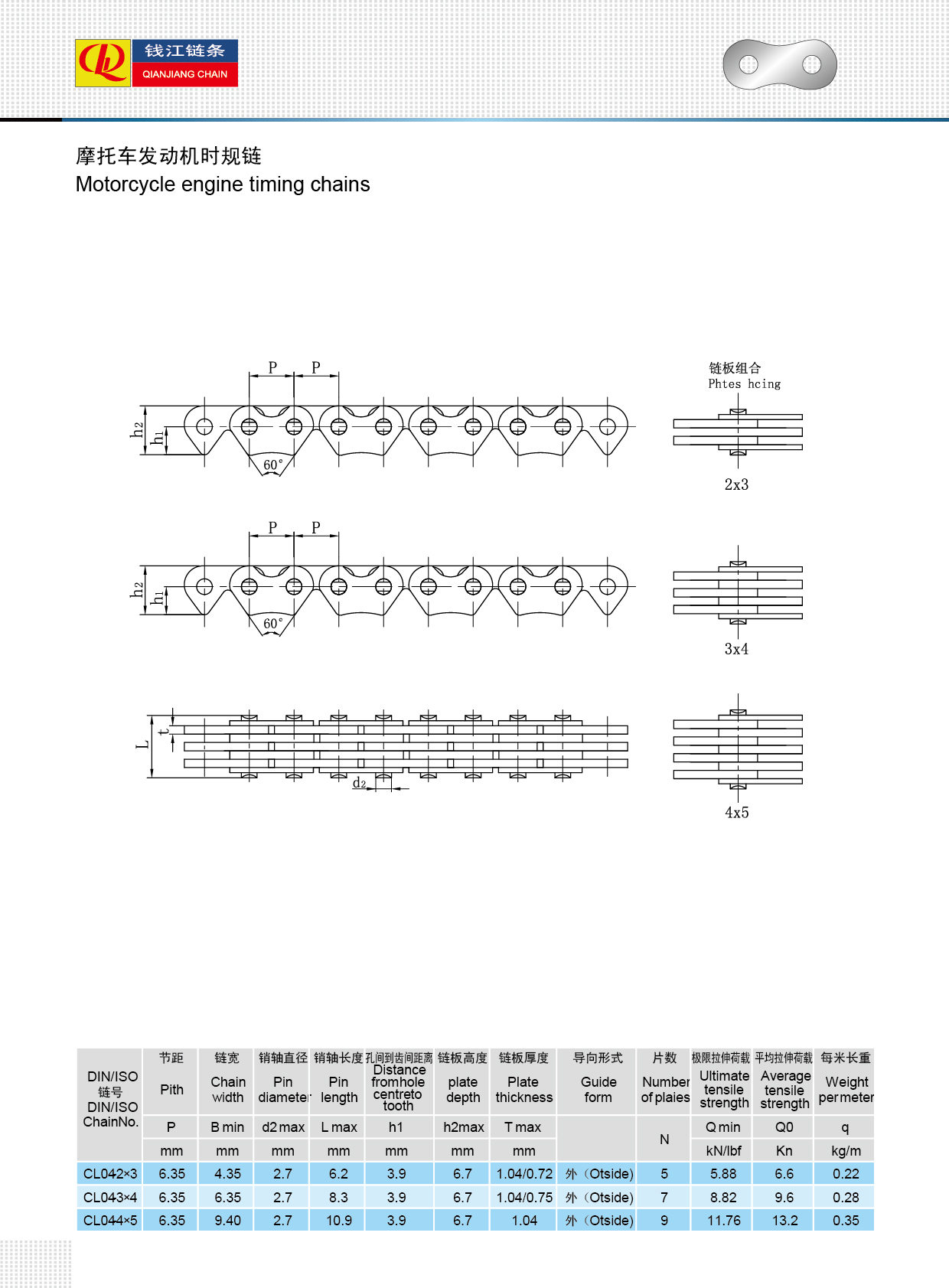

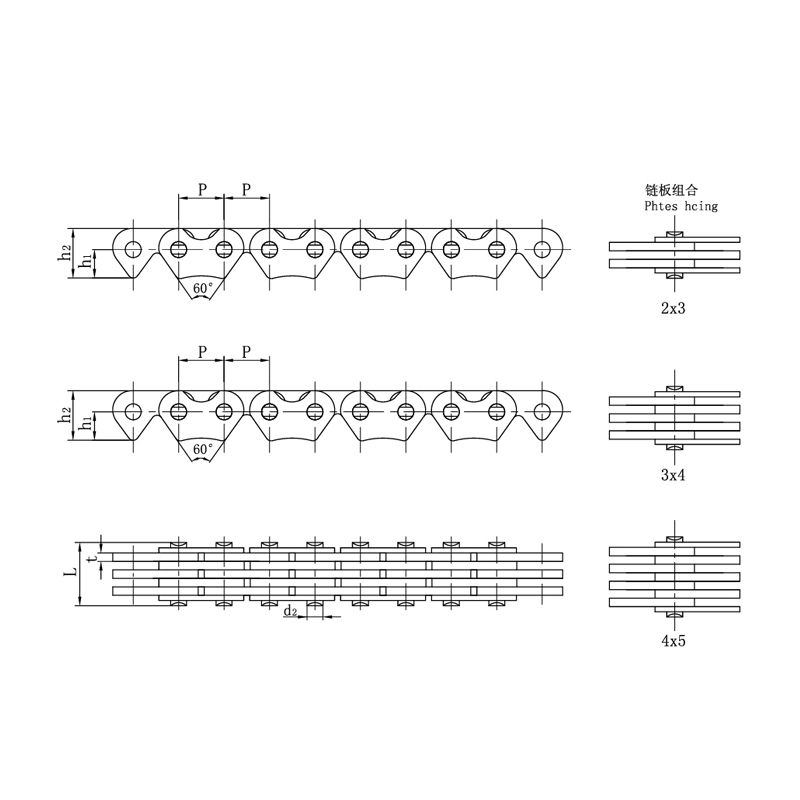

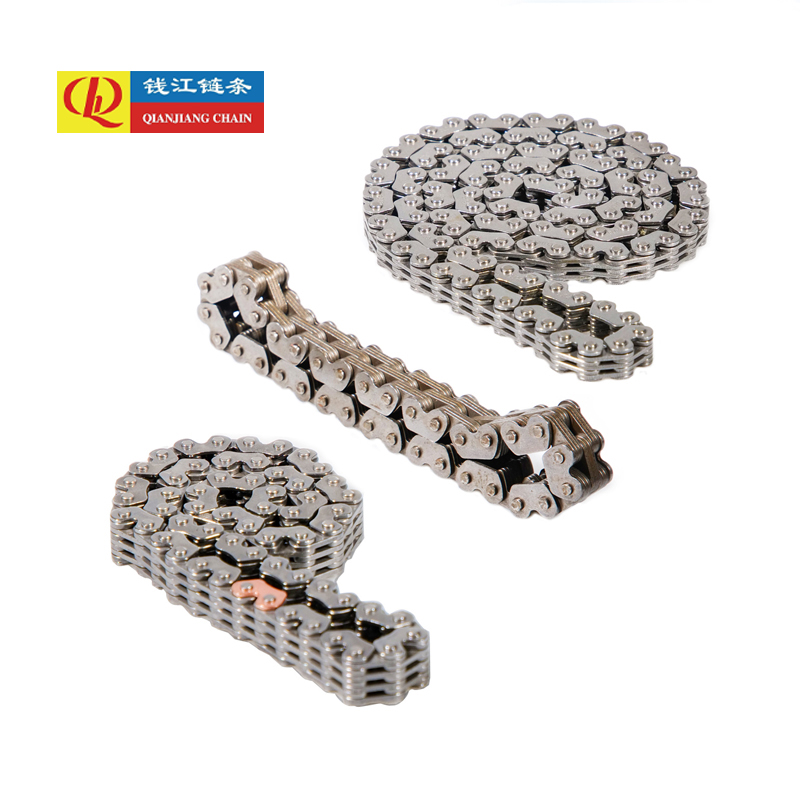

Motorcycle engine timing chains

E-mail:[email protected] Phone:+86-13805752016

DIN/ISO Chain No.	Pith	Chain Width	Pin diameter	Pin length	Distance from hole centreto tooth	plate depth	Plate thickness	Guide form	Number of plaies	Ultimate tensile strength	Average tensile strength	Weight per meter
	P	B min	d2 max	L max	h1	h2max	T max		N	Q min	Q0	q
	mm	mm	mm	mm	mm	mm	mm		N	kN/lbf	kN	kg/m
CL04-2x3	6.35	4.35	2.7	6.2	3.9	6.7	1.04/0.72	Outside	5	5.88	6.6	0.22
CL04-3x4	6.35	6.35	2.7	8.3	3.9	6.7	1.04/0.75	Outside	7	8.82	9.6	0.28
CL04-4x5	6.35	9.40	2.7	10.9	3.9	6.7	1.04	Outside	9	11.76	13.2	0.35
