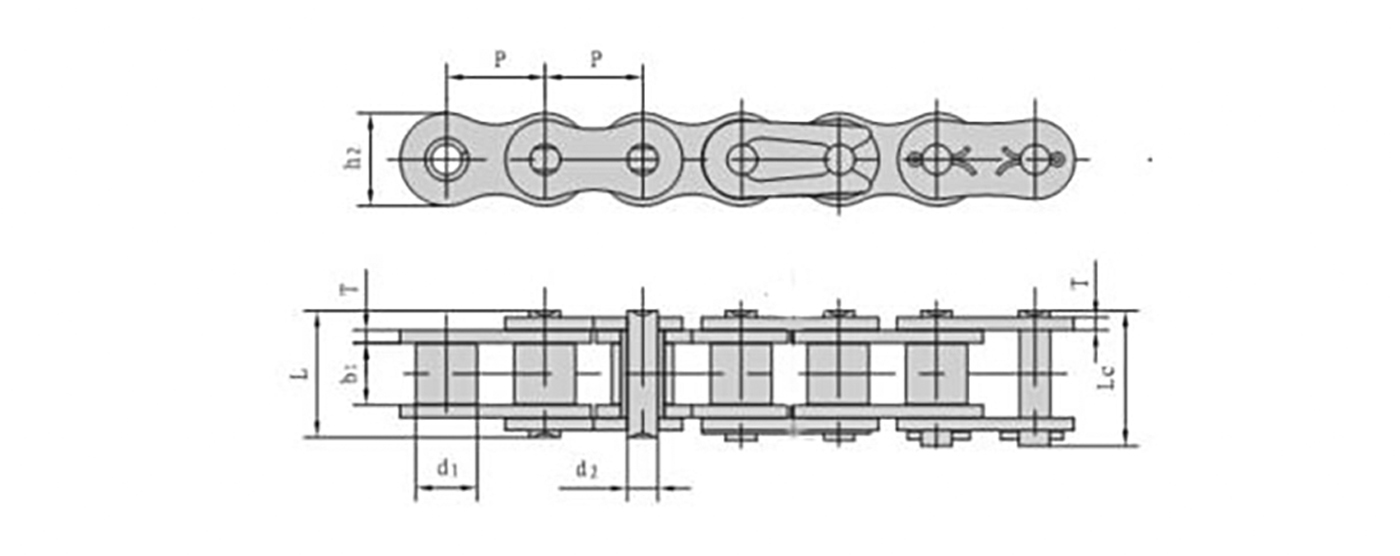

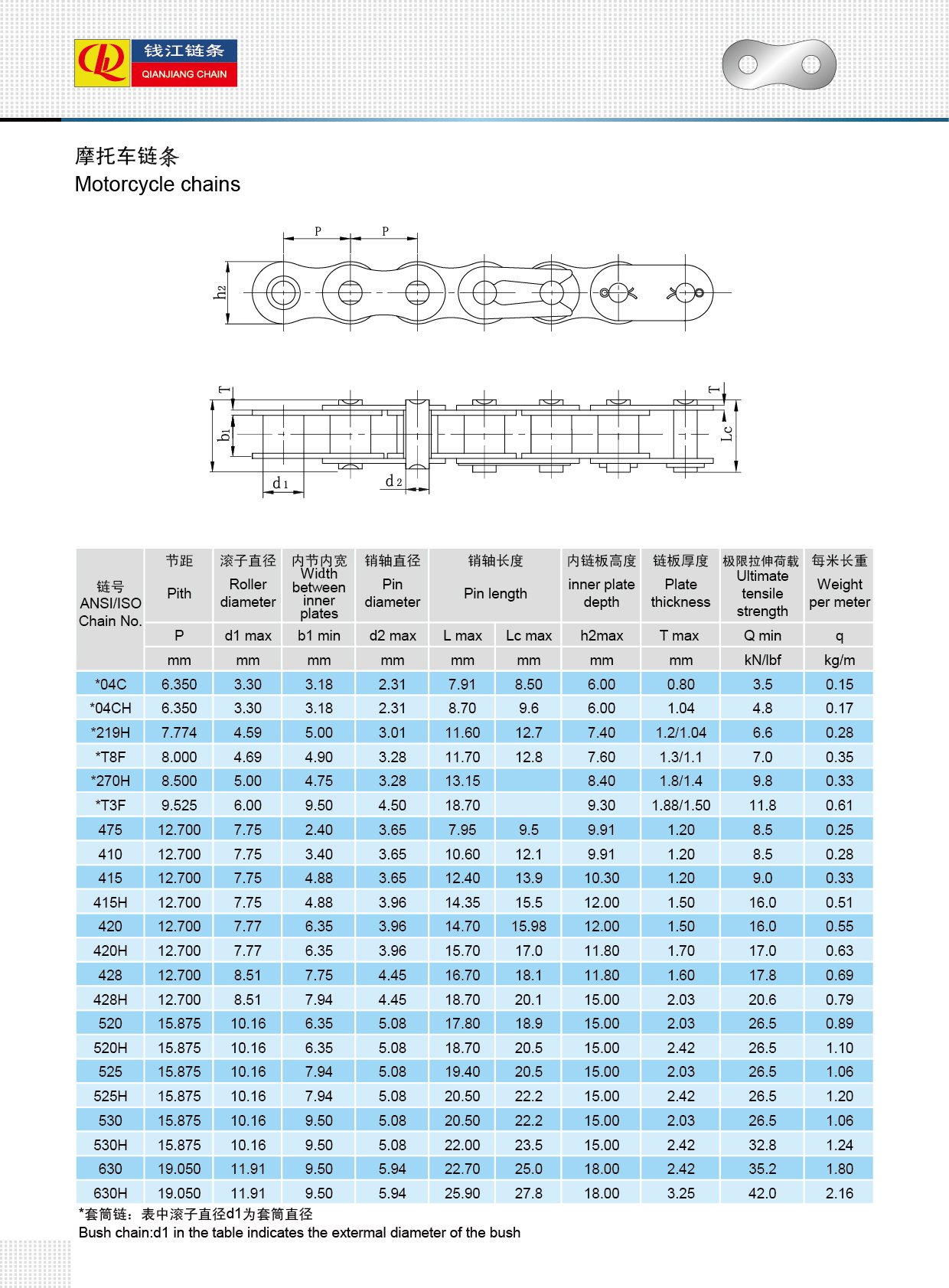

ANSI/ISO Chain No | Pith | Roller diameter | Width between inner plates | Pin diameter | Pin length | inner plate depth | Plate thickness | Ultimate tensile strength | Weight per meter | |
P | d1 max | b1 min | d2 max | L max | Lc max | h2 max | T max | Q min | q | |
mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kg/m | |
*04C | 6.350 | 3.30 | 3.18 | 2.31 | 7.90 | 8.50 | 6.00 | 0.80 | 3.5 | 0.15 |
*04CH | 6.350 | 3.30 | 3.18 | 2.31 | 8.70 | 9.6 | 6.00 | 1.04 | 4.8 | 0.17 |
*219H | 7.774 | 4.59 | 5.00 | 3.01 | 11.60 | 12.7 | 7.40 | 1.2/1.04 | 6.6 | 0.28 |
*T8F | 8.000 | 4.69 | 4.90 | 3.28 | 11.70 | 12.8 | 7.60 | 1.3/1.1 | 7.0 | 0.35 |
*270H | 8.500 | 5.00 | 4.75 | 3.28 | 13.15 | 8.40 | 1.8/1.4 | 9.8 | 0.33 | |
*T3F | 9.525 | 6.00 | 9.50 | 4.50 | 18.70 | 9.30 | 1.88/1.50 | 11.8 | 0.61 | |
475 | 12.700 | 7.75 | 2.40 | 3.65 | 7.95 | 9.5 | 9.91 | 1.20 | 8.5 | 0.25 |
410 | 12.700 | 7.75 | 3.40 | 3.65 | 10.60 | 12.1 | 9.91 | 1.20 | 8.5 | 0.28 |
415 | 12.700 | 7.75 | 4.88 | 3.65 | 12.40 | 13.9 | 10.30 | 1.20 | 9.0 | 0.33 |
415H | 12.700 | 7.75 | 4.88 | 3.96 | 14.35 | 15.5 | 12.00 | 1.50 | 16.0 | 0.51 |
420 | 12.700 | 7.77 | 6.35 | 3.96 | 14.70 | 15.98 | 12.00 | 1.50 | 16.0 | 0.55 |
420H | 12.700 | 7.77 | 6.35 | 3.96 | 15.70 | 17.0 | 11.80 | 1.70 | 17.0 | 0.63 |
428 | 12.700 | 8.51 | 7.75 | 4.45 | 16.70 | 18.1 | 11.80 | 1.60 | 17.8 | 0.69 |
428H | 12.700 | 8.51 | 7.94 | 4.45 | 18.70 | 20.1 | 15.00 | 2.03 | 20.6 | 0.79 |
520 | 15.875 | 10.16 | 6.35 | 5.08 | 17.80 | 18.9 | 15.00 | 2.03 | 26.5 | 0.89 |
520H | 15.875 | 10.16 | 6.35 | 5.08 | 18.70 | 20.5 | 15.00 | 2.42 | 26.5 | 1.10 |
525 | 15.875 | 10.16 | 7.94 | 5.08 | 19.40 | 20.5 | 15.00 | 2.03 | 26.5 | 1.06 |
525H | 15.875 | 10.16 | 7.94 | 5.08 | 20.50 | 22.2 | 15.00 | 2.42 | 26.5 | 1.20 |
530 | 15.875 | 10.16 | 9.50 | 5.08 | 20.50 | 22.2 | 15.00 | 2.03 | 26.5 | 1.06 |
530H | 15.875 | 10.16 | 9.50 | 5.08 | 22.00 | 23.5 | 15.00 | 2.42 | 32.8 | 1.24 |
630 | 19.050 | 11.91 | 9.50 | 5.94 | 22.70 | 25.0 | 18.00 | 2.42 | 35.2 | 1.80 |
630H | 19.050 | 11.91 | 9.50 | 5.94 | 25.90 | 27.8 | 18.00 | 3.25 | 42.0 | 2.16 |
Bush chain: d1 in the table indicates the extermal diameter of the bush
