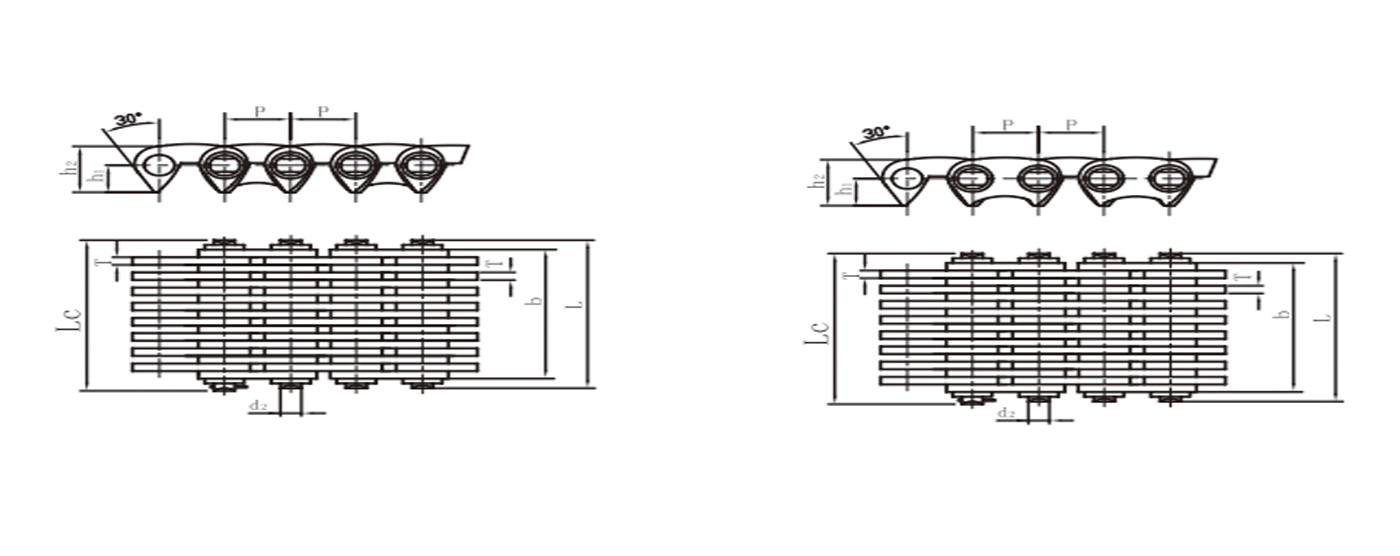

GB Chain No. | Pith | Chain Width | Pin diameter | Pin length | Distance from hole centre to tooth | plate depth | Guide form | Number of plaies | Ultimate tensile strength | Weight per meter | |
P | B min | d2 max | L max | Lc max | h1 | h2max | N | Q min | q | ||
mm | mm | mm | mm | mm | mm | mm | kN/lbf | kg/m | |||
13.5 | 18.5 | 20.0 | Outside | 9 | 10.0 | 0.6 | |||||
16.5 | 21 | 23.0 | Outside | 11 | 12.5 | 0.73 | |||||
CL06 | 9.525 | 19.5 | 3.28 | 24.5 | 26.0 | 5.3 | 10.0 | Outside | 13 | 15.0 | 0.85 |
22.5 | 27.5 | 29.0 | Outside | 15 | 17.52 | 1 | |||||
28.5 | 33.5 | 35.0 | Outside | 19 | 22.5 | 1.26 | |||||
19.5 | 24.5 | 26.0 | Outside | 13 | 23.4 | 1.15 | |||||
22.5 | 27.5 | 29.0 | Outside | 15 | 27.4 | 1.33 | |||||
25.5 | 30.5 | 32.0 | Outside | 17 | 31.3 | 1.5 | |||||
CL08 | 12.700 | 28.5 | 5.08 | 33.5 | 35.0 | 7.0 | 13.4 | Inside | 19 | 35.2 | 1.68 |
34.5 | 39.5 | 41.0 | Inside | 23 | 43.0 | 2.04 | |||||
40.5 | 45.5 | 47.0 | Inside | 27 | 50.8 | 2.39 | |||||
46.5 | 51.5 | 53.0 | Inside | 31 | 58.6 | 2.74 | |||||
52.5 | 57.5 | 59.0 | Inside | 35 | 66.4 | 3.1 | |||||
30.0 | 37.0 | 38.2 | Inside | 15 | 45.6 | 2.21 | |||||
38.0 | 45.0 | 46.2 | Inside | 19 | 58.6 | 2.8 | |||||
CL10 | 15.875 | 46.0 | 5.92 | 53.0 | 54.2 | 8.7 | 16.7 | Inside | 23 | 71.7 | 3.39 |
54.0 | 61.0 | 62.4 | Inside | 27 | 84.7 | 3.99 | |||||
62.0 | 69.0 | 70.4 | Inside | 31 | 97.7 | 4.58 | |||||
38.0 | 45.0 | 46.5 | Inside | 19 | 70.0 | 3.37 | |||||
46.0 | 53.0 | 554.5 | Inside | 23 | 86.0 | 4.08 | |||||
CL12 | 19.050 | 54.0 | 6.90 | 61.0 | 62.8 | 10.50 | 20.0 | Inside | 27 | 102.0 | 4.78 |
62.0 | 69.0 | 70.8 | Inside | 31 | 117.0 | 5.5 | |||||
70.0 | 77.0 | 78.8 | Inside | 35 | 133.0 | 6.2 | |||||
45.0 | 52.0 | 53.5 | Inside | 15 | 111.0 | 5.31 | |||||
51.0 | 58.0 | 59.5 | Inside | 17 | 125.0 | 6.02 | |||||
CL16 | 25.400 | 57.0 | 8.9 | 64.0 | 65.5 | 14.0 | 26.70 | Inside | 19 | 141.0 | 6.37 |
69.0 | 76.2 | 77.7 | Inside | 23 | 172.0 | 8.15 | |||||
81.0 | 68.2 | 89.7 | Inside | 27 | 203.0 | 9.57 | |||||
93.0 | 100.2 | 101.7 | Inside | 31 | 235.0 | 10.98 | |||||
57.0 | 66.6 | 69.6 | Inside | 19 | 165.0 | 8.42 | |||||
69.0 | 78.6 | 81.6 | Inside | 23 | 201.0 | 10.19 | |||||
CL20 | 31.750 | 81.0 | 10.84 | 90.6 | 93.6 | 17.5 | 33.40 | Inside | 27 | 237.0 | 11.96 |
93.0 | 102.6 | 105.6 | Inside | 31 | 273.0 | 13.73 | |||||
105.5 | 114.6 | 117.65 | Inside | 35 | 310.0 | 15.5 | |||||
117.0 | 126.6 | 129.6 | Inside | 39 | 346.0 | 17.27 | |||||
117.0 | 129.0 | 131.0 | Inside | 39 | 415.0 | 20.73 | |||||
CL24 | 38.10 | 129.0 | 12.8 | 141.0 | 143.0 | 20.96 | 40.01 | Inside | 43 | 458.0 | 22.86 |
141.0 | 153.0 | 155.0 | Inside | 47 | 502.0 | 24.99 |
