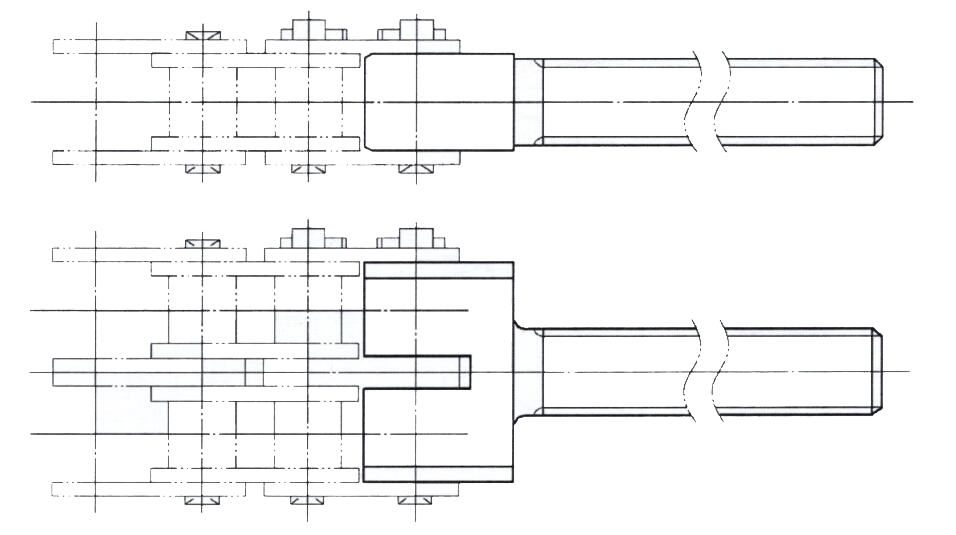

Car parking chain's connector and the connecting way

Car parking chain's connector and the connecting way

Hangzhou qianjiang chain industries Co.,Ltd.

0
Views: 1,499

Product Details

 width=

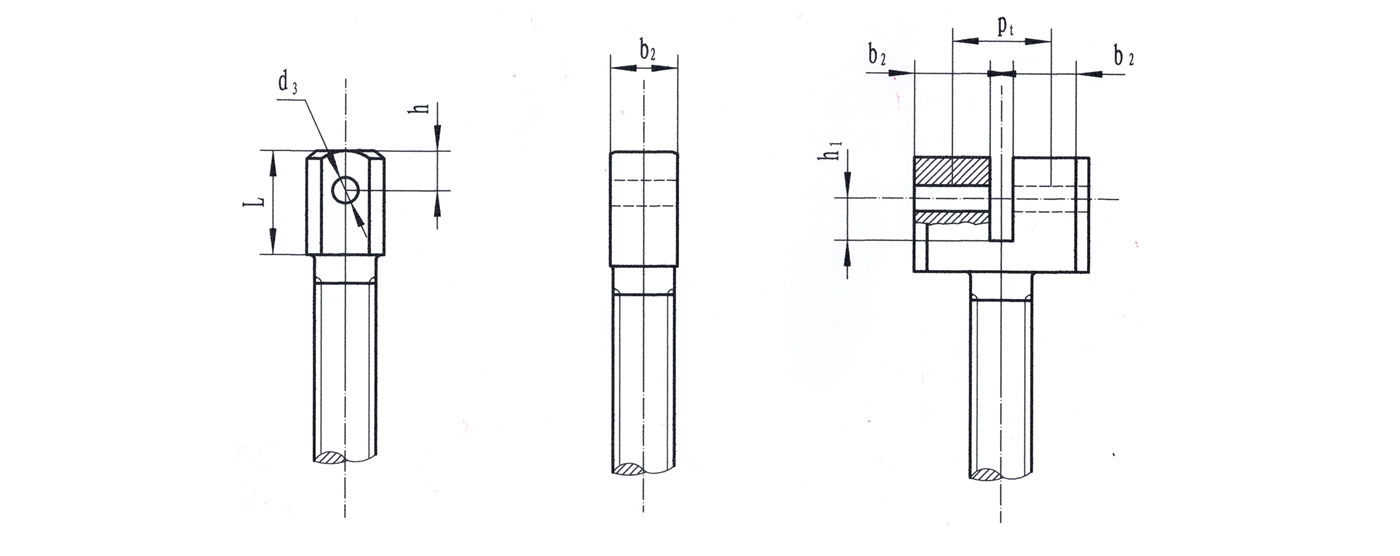

      Car parking         chains NO.   DIN/ISO     chains No. The head width of connector  The distance from hole centre to the side of connector head The hole diameter of connector The head depth of connector The head length of connector The transverse pitch of duplex connector
b2(max) h(max) d3(min) h1(min) L(min) Pt
mm mm mm mm mm mm
LT40 08A 11.17 6.10 4. 00 6. 16 18 14. 38
LT50 10A 13.84 7.60 5. 12 7. 67 22 18. 11
LT60 12A 17.75 9.10 5. 98 9. 17 24 22. 78
LT60H 12AH 19.43 9.10 5. 98 9. 17 24 26. 11
LT80 16A 22.60 12.10 7. 96 12. 19 30 29.29
LT80H 16AH 24.28 12.10 7. 96 12. 19 30 32. 59
LT100 20A 27.45 15.10 9. 56 15.24 36 35. 76
