Short pitch precision roller chains ( B series ) 3

Short pitch precision roller chains ( B series ) 3

Hangzhou qianjiang chain industries Co.,Ltd.

0
Views: 1,710

Product Details

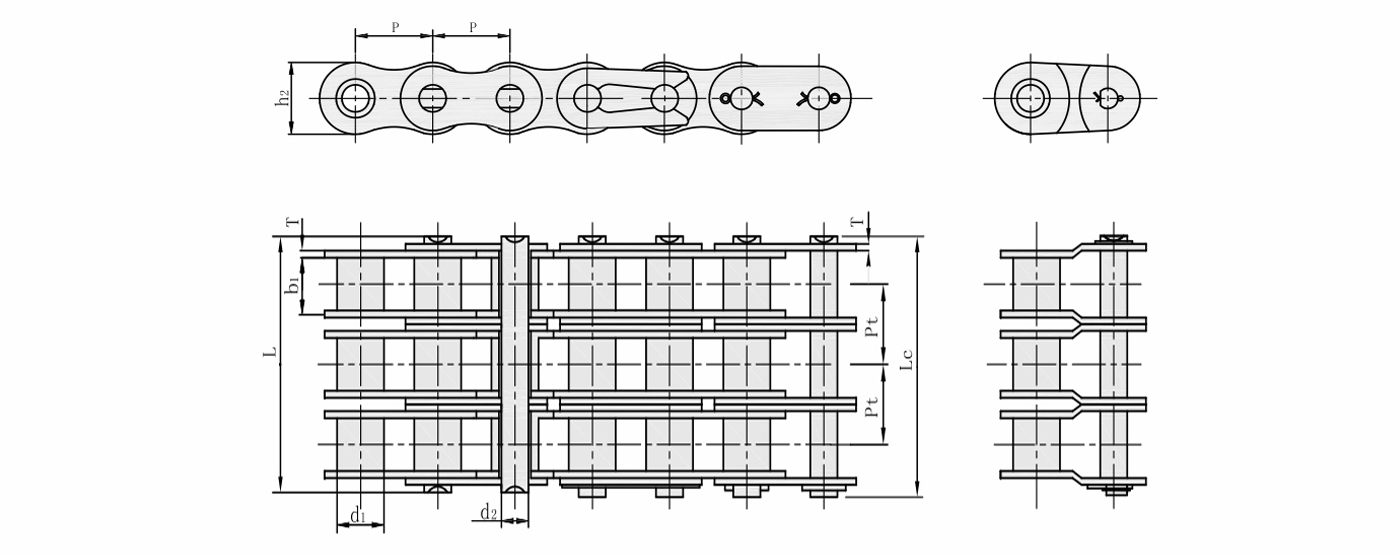

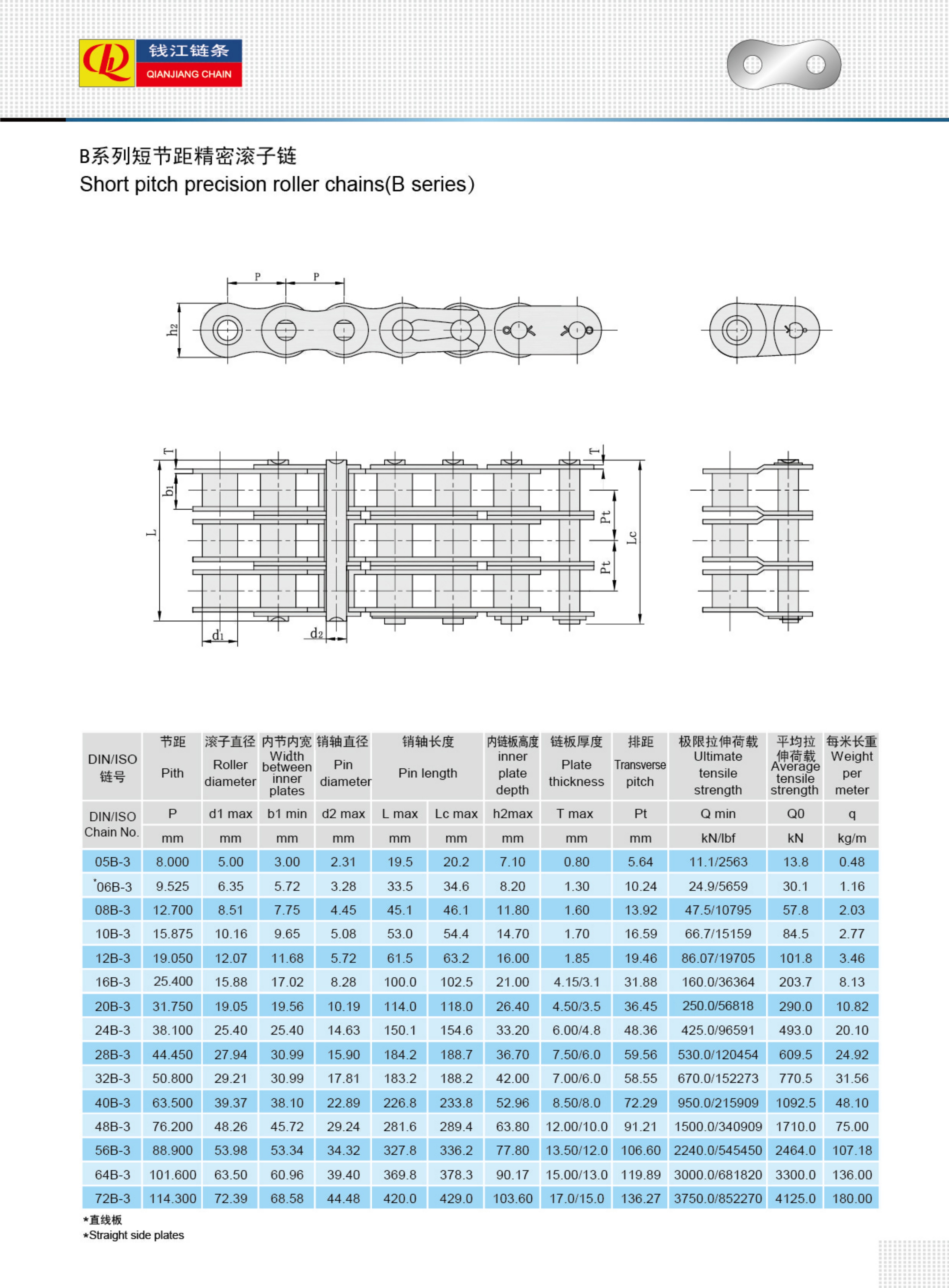

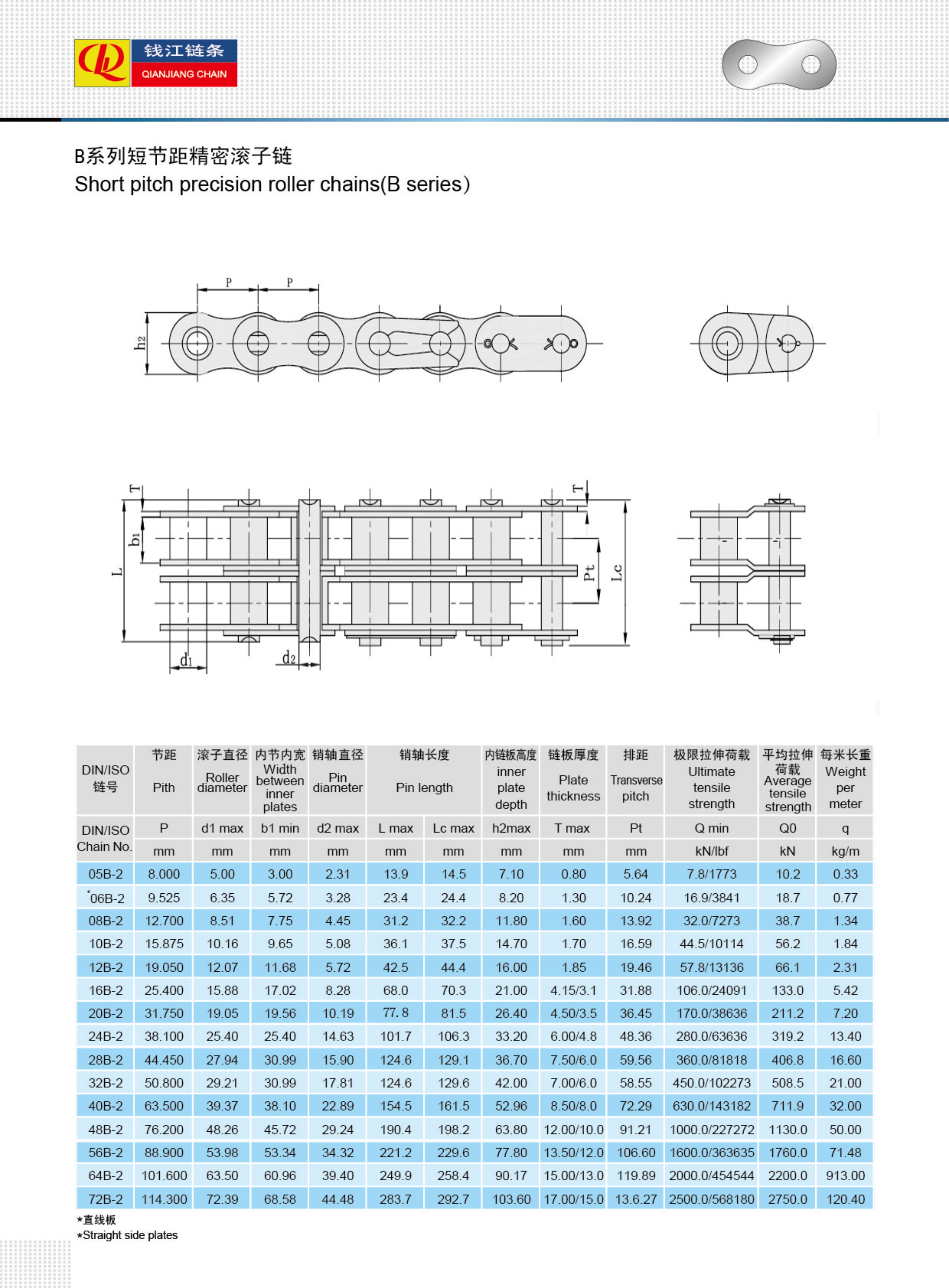

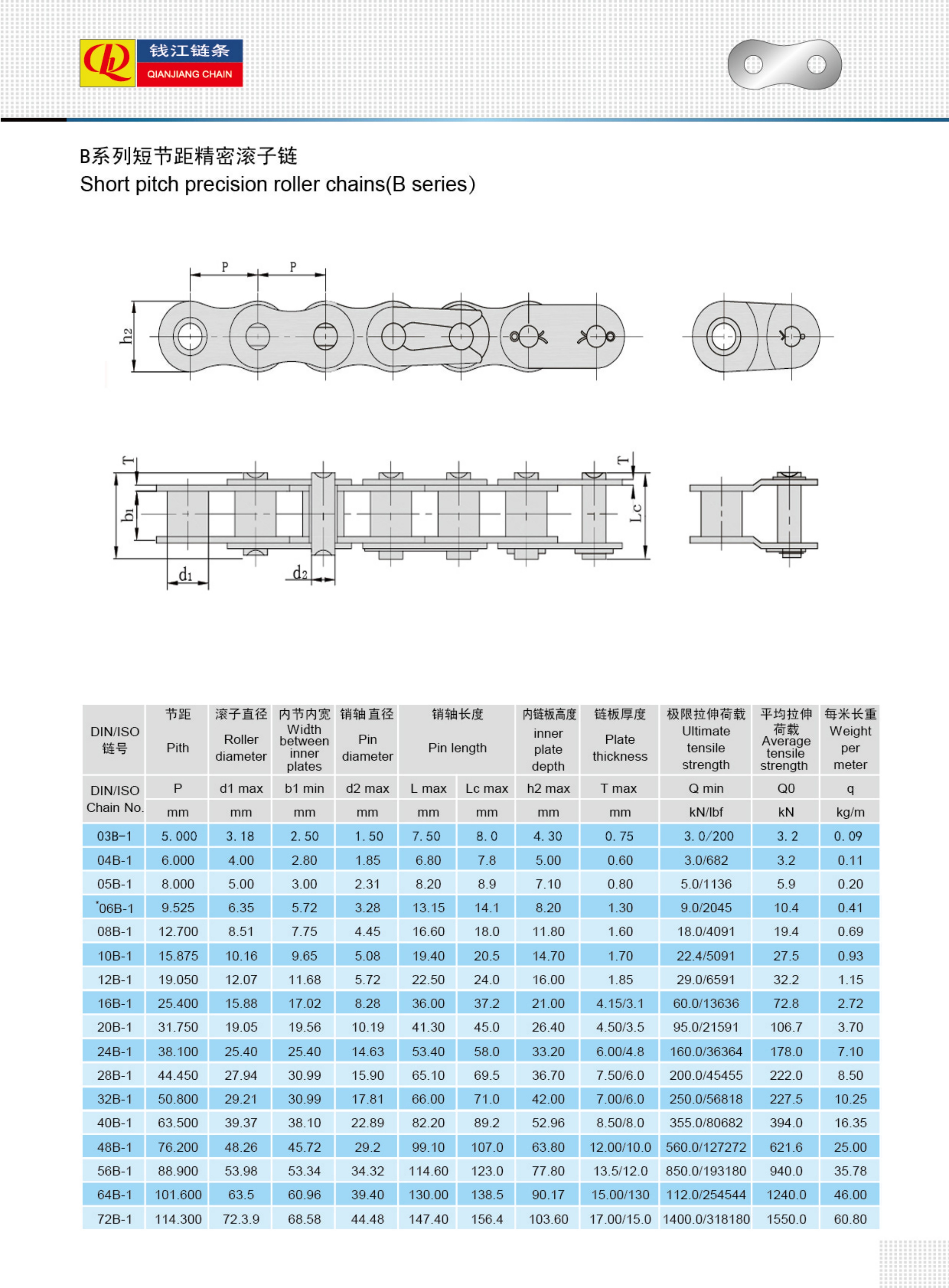

DIN/ISO Chain NO. Pith   Roller diameter       Width            between        inner     plates        Pin     diameter Pin length      inner         plate       depth     Plate    thickness     Transverse      pitch Ultimate    tensile       strength   Average tensile  strength  Weight       per        meter
P d1 max b1 min d2 max L max Lc max h2 max T max Pt Q min Q0 q
mm mm mm mm mm mm mm mm mm kN/lbf kN kg/m
05B-3 8.000  5.00  3.00  2.31  19.5  20.2  7.10  0.80  5.64  11.1/2563 13.8  0.48
*06B-3 9.525  6.35  5.72  3.28  33.5  34.6 8.20  1.30  10.24  24.9/5659 30.1  1.16
08B-3 12.700  8.51  7.75  4.45  45.1  46.1  11.80  1.60  13.92  47.5/10795 57.8  2.03
10B-3 15.875  10.16  9.65  5.08  53.0  54.4  14.70  1.70  16.59  66.7/15159 84.5  2.77
12B-3 19.050  12.07  11.68  5.72  61.5  63.2  16.00  1.85  19.46  86.07/19705 101.8  3.46
16B-3 24.400  15.88  17.02  8.28  100.0  102.5  21.00  4.158/3.1 31.88  160.0/36364 203.7  8.13
20B-3 31.750  19.05  19.56  10.19  114.0  118.0  26.40  4.50/3.5 36.45  250.0/568518 290.0  10.82
24B-3 38.100  25.40  25.40  14.63  150.1  154.6  33.20  6.00/4.8 48.36  425.0/96591 493.0  20.10
28B-3 44.450  27.94  30.99  15.90  184.2  188.7 36.70  7.50/6.0 59.56  530.0/120454 609.5  24.92
32B-3 50.800  29.21  30.99  17.81  183.2  188.2  42.00  7.00/6.0 58.55  670.0/152273 770.5  31.56
40B-3 63.500  39.37  38.10  22.89  226.8  233.8  52.96  8.50/8.0 72.29  950.0/215909 1092.5  48.10
48B-3 76.200  48.26  45.72  29.24  281.6  289.4  63.80  12.00/10.0 91.21  1500.0/340909 1710.0  75.00
56B-3 88.900  53.98  53.34  34.32  327.8  336.2  77.80  13.50/12.0 106.60  2240.0/545450 2464.0  107.18
64B-3 101.600  63.50  60.96  39.40  369.8  378.3  90.17  15.00/13.0 119.89  3000.0/681820 3300.0  136.00
72B-3 114.300  72.39  68.58  44.48  420.0  429.0  103.60  17.0/15.0 136.27  3750.0/852270 4125.0  180.00

*Straight side plates
