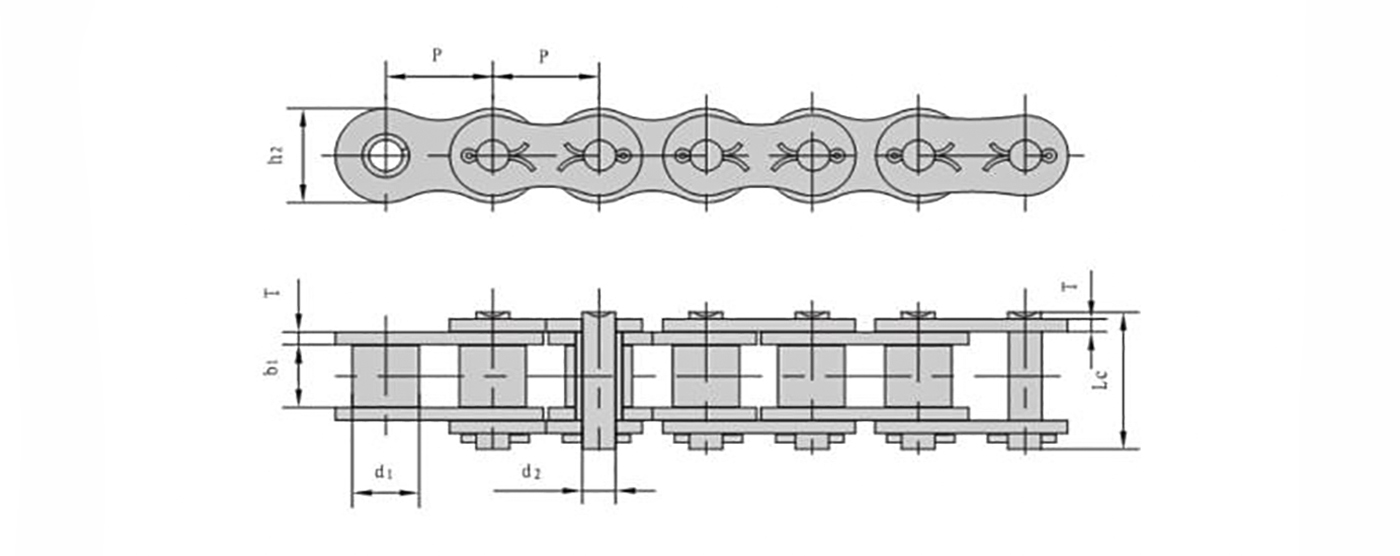

Cottered type short pitch precision roller chains ( A series ) 1

Cottered type short pitch precision roller chains ( A series ) 1

Hangzhou qianjiang chain industries Co.,Ltd.

0
Views: 1,988

Product Details





    DIN/ISO     Chain No.





ANSI  Chain No.



Pith

Roller diameter

        Width             between              inner          plates

Pin        diameter

Pin length

       inner                 plate            depth

   Plate      thickness

            Ultimate                         tensile                strength

Average tensile  strength

       Weight                     per                    meter

P

d1 max

b1 min

d2 max

Lc max

h2max

T max

Q min

Q0

q

mm

mm

mm

mm

mm

mm

mm

kN/lbf

kN

kg/m

10A-1

50-1

15.8750

10.16

9.40

5.08

23.3

15.09

2.03

22.2/5045

29.4

1.02

12A-1

60-1

19.0500

11.91

12.57

5.94

28.3

18.00

2.42

31.8/7227

41.5

1.60

16A-1

80-1

25.4000

15.88

15.75

7.92

36.5

24.00

3.26

56.7/12886

69.4

2.60

20A-1

100-1

31.7500

19.05

18.90

9.53

44.7

30.00

4.00

88.5/20114

109.2

3.91

24A-1

120-1

38.1000

22.23

25.22

11.10

54.3

35.70

4.80

127.0/28864

156.3

5.62

28A-1

140-1

44.4500

25.40

25.22

12.70

59.0

41.00

5.60

172.4/39182

212.0

7.50

32A-1

160-1

50.8000

28.58

31.55

14.27

69.6

47.80

6.40

226.8/51545

278.9

10.10

36A-1

180-1

57.1500

35.71

35.48

17.6

78.6

53.60

7.20

280.2/63682

341.8

13.45

40A-1

200-1

63.5000

39.68

37.85

19.85

87.2

60.00

8.00

353.8/80409

431.6

16.15

48A-1

240-1

76.2000

47.63

47.35

23.81

103.0

72.39

9.50

510.3/115977

622.5

23.20
