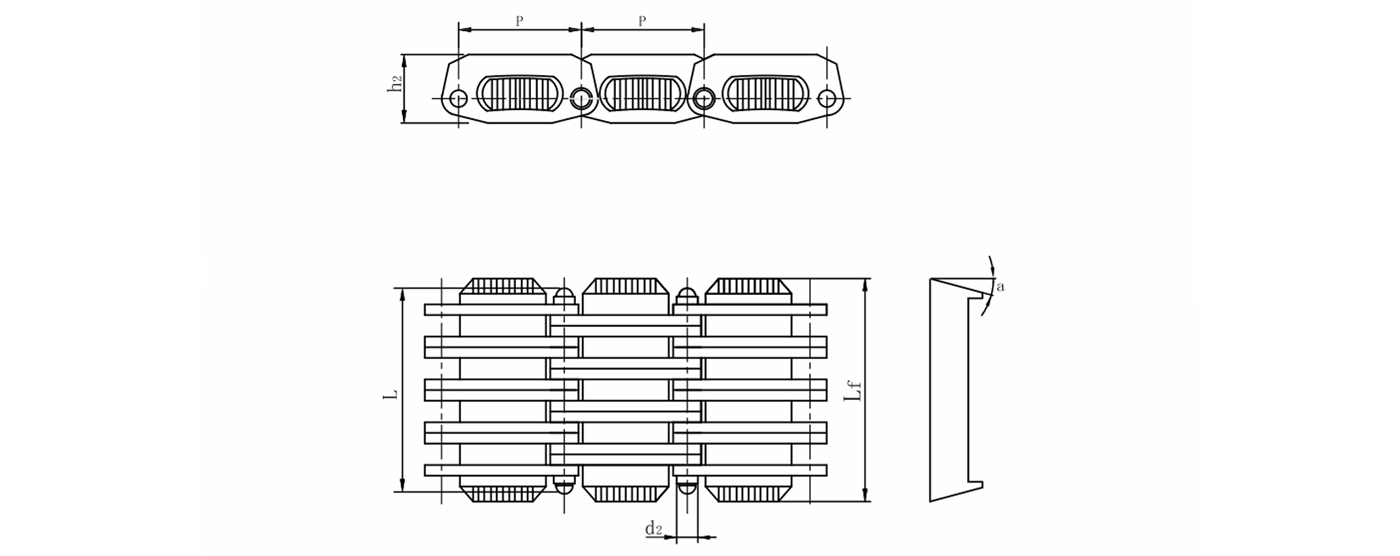

Chain No. | Pith | Pin diameter | Pin length | plate depth | Width over friction plate | Angle of friction plate | Ultimate tensile strength | Weight per meter |
P | d2 max | L max | h2max | Lf | a max | Q min | q | |
mm | mm | mm | mm | mm | 0 | kN/lbf | kg/m | |
A0 | 18.75 | 3.0 | 19.5 | 9.5 | 24.0 | 15 | 9.0 | 1.00 |
A1/A2 | 25.00 | 3.0 | 30.1 | 13.5 | 37.8 | 15 | 21.0 | 2.23 |
A3 | 28.60 | 3.0 | 35.3 | 16.0 | 44.25 | 15 | 38.5 | 3.04 |
A4 | 36.00 | 4.0 | 48.5 | 20.5 | 58.5 | 15 | 61.5 | 5.54 |
A5 | 36.00 | 4.0 | 60.5 | 20.5 | 70.0 | 15 | 71.0 | 5.54 |
A6 | 44.00 | 5.4 | 70.0 | 24.0 | 77.0 | 15 | 12.5 | 9.00 |

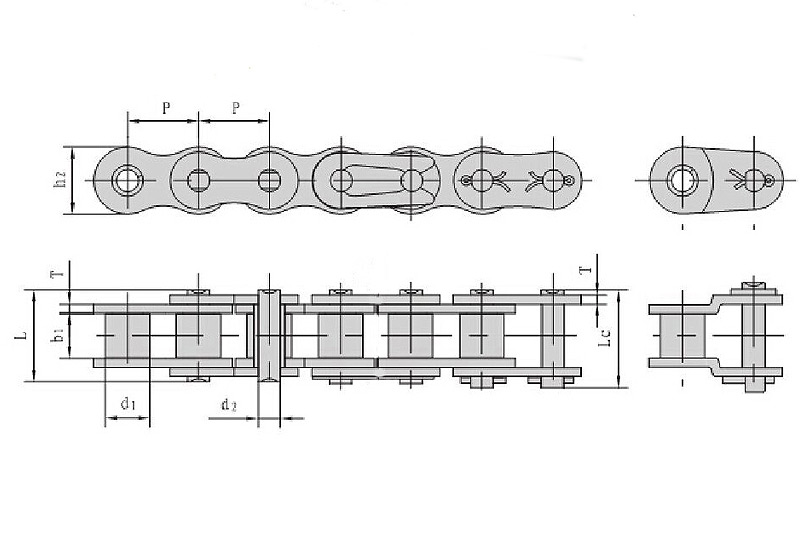

Bush chain: d1 in the table indicates the extermal diameter of the bush
