High strength agricultural machinery chains

Agricultural machinery chains 2

Agricultural machinery chains 2

Hangzhou qianjiang chain industries Co.,Ltd.

0
Views: 2,124
E-mail:[email protected] Phone:+86-13805752016

Product Details

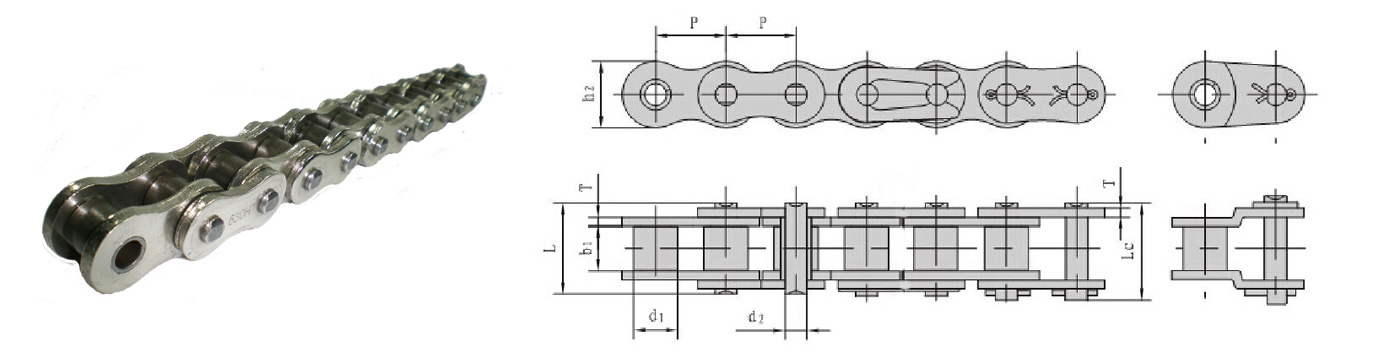

Chain No.  Pith   Roller diameter Width    between         inner     plates    Pin        diameter Pin length               inner                          plate                 depth       Plate   thickness Ultimate   tensile  strength              Weight                            per                      meter
P d1 max b1 min d2 max L max Lc max h2max T max Q min q
mm mm mm mm mm mm mm mm kN/lbf kg/m
630HT 19.050 11.91  9.50  5.94 25.90 27.8  18.00 3.25  42.0 2.16
08N(G4B) 12.700 8.51  5.60  4.45 14.60 15.7  11.80 1.60  16.0 0.66
