Side bow chains

Side bow chains

Side bow chains

Hangzhou qianjiang chain industries Co.,Ltd.

0
Views: 1,237
E-mail:[email protected] Phone:+86-13805752016

Product Details

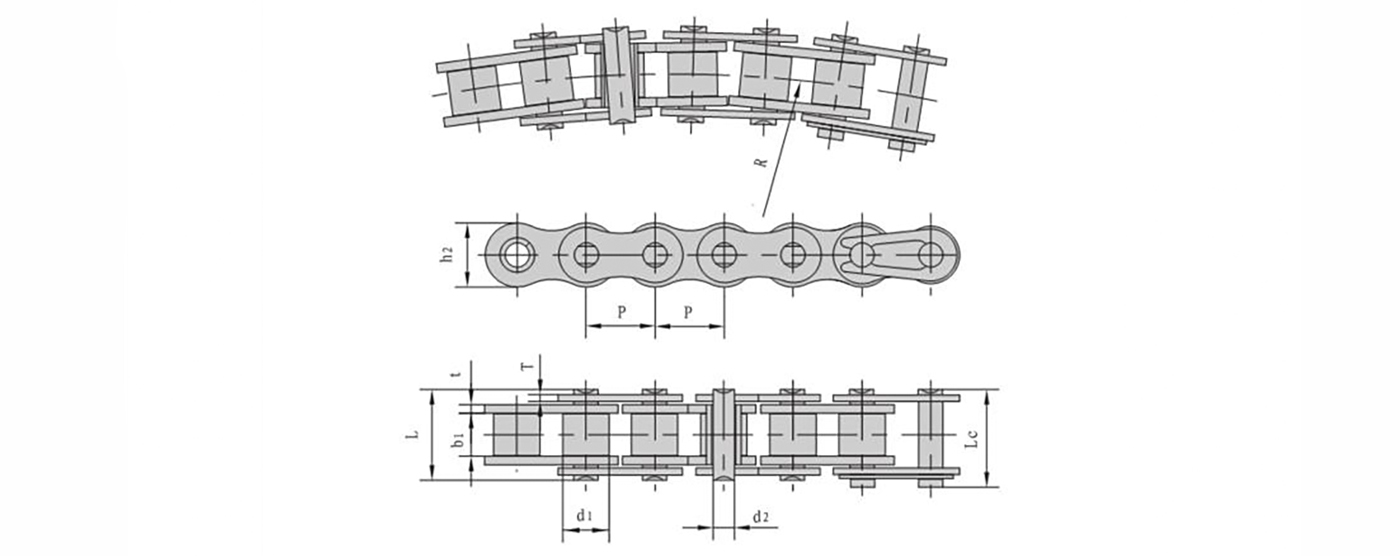

 Qianjiang   Chain NO. Pith   Roller diameter   Width       between          inner      plates        Pin       diameter Pin length     inner       plate       depth      Plate    thickness       Side bow     chains  Ultimate     tensile       strength   Average  tensile  strength  Weight       per           meter
P d1 max b1 min d2 max L max Lc max h2 max T max Pt Q min Q0 q
mm mm mm mm mm mm mm mm mm kN/lbf kN kg/m
40SB 12.700  7.95  7.85  3.96  16.9  18.1 11.70  1.50  350 13.8/3136 15.20  0.80
43SB 12.700  7.95  7.85  3.45  18.3 19.5  11.70  1.50  305 12.0/2727 13.20  0.64
50SB 15.875  10.16  9.40  4.37  20.7  22.7  14.90  2.00  400 20.6/4681 22.70  1.09
60SB 19.050  11.91  12.57  5.34  26.6  28.4  18.00  2.40  500 15.7/3568 17.30  1.54
63SB 19.050  11.91  12.68  5.08  28.8  30.6  17.20  2.40/2.00 350 12.5/2840 20.00  1.40
80SB 25.400  15.88  15.75  7.19  34.0  37.3  24.00  3.25  711 40.9/9201 42.00  2.60
