Short pitch precision roller chains ( A series ) 3

Short pitch precision roller chains ( A series ) 3

Hangzhou qianjiang chain industries Co.,Ltd.

0
Views: 362

Product Details

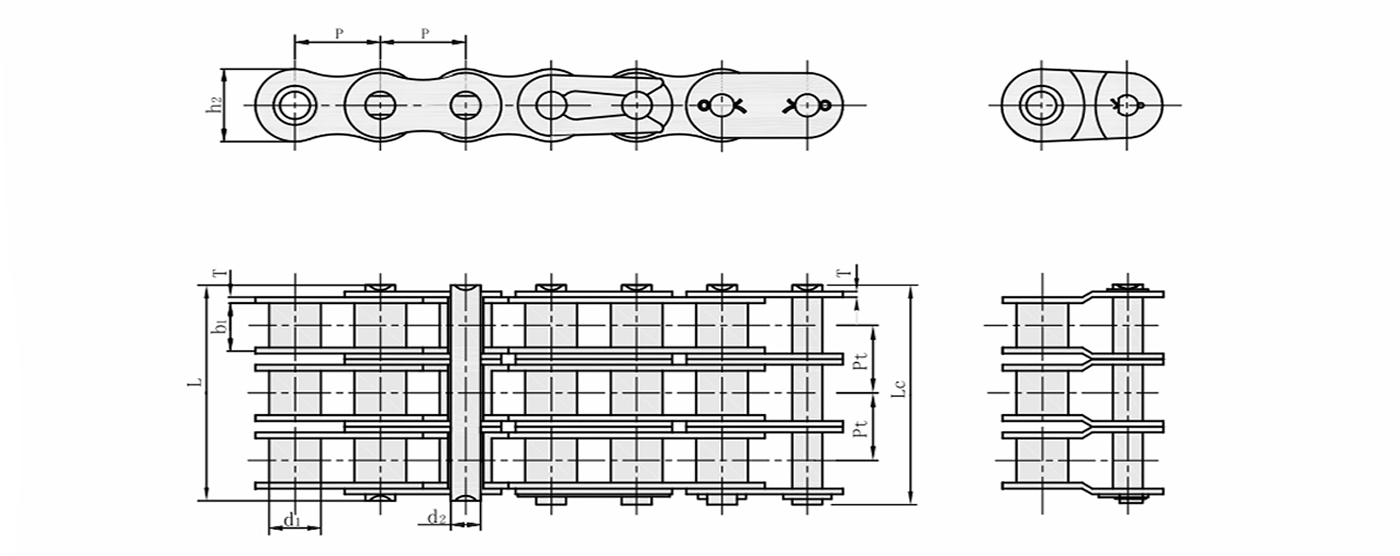

DIN/ISO Chain No.





     ANSI       Chain No.



Pith

Roller diameter

     Width           between        inner         plates

Pin        diameter

Pin length

inner    plate     depth

Plate  thickness

Transverse pitch

       Ultimate               tensile          strength

Average  tensile  strength

Weight    per      meter

P

d1 max

b1 min

d2 max

L max

Lc max

h2 max

T max

Pt

Q min

Q0

q

mm

mm

mm

mm

mm

mm

mm

mm

mm

kN/lbf

kN

kg/m

04C-3

25-3

6.350

3.30

3.18

2.31

21.0

21.5

6.00

0.80

6.40

10.5/2386

12.6

0.44

06C-3

35-3

9.525

5.08

4.77

3.58

32.7

33.5

9.00

1.30

10.13

23.7/5386

28.6

1.05

08A-3

40-3

12.700

7.95

7.85

3.96

45.8

46.6

12.00

1.50

14.38

42.3/9614

500

1.90

10A-3

50-3

15.875

10.16

9.40

5.08

57.0

58.4

15.09

2.03

18.11

66.6/15136

77.78

3.09

12A-3

60-3

19.050

11.91

12.57

5.94

71.2

72.8

18.00

2.42

22.78

95.4/21682

111.1

4.54

16A-3

80-3

25.400

15.88

15.75

7.92

92.0

93.8

24.00

3.25

29.29

170.1/38659

198.4

7.89

20A-3

100-3

31.750

19.05

18.90

9.53

112.0

11.63

30.00

4.00

35.76

265.5/60341

309.6

11.77

24A-3

120-3

38.100

22.23

25.22

11.10

141.4

145.2

35.70

4.80

45.44

381.0/86591

437.2

17.53

28A-3

140-3

44.450

25.40

25.22

12.70

152.2

156.8

41.00

.5.60

48.87

517.2/117545

593.3

22.00

32A-3

160-3

50.800

28.58

31.55

14.27

181.8

186.6

41.80

6.40

58.55

680.7/154636

780.6

30.02

36A-3

180-3

57.150

35.71

35.48

17.46

4.4

210.2

53.60

7.20

65.84

840.7/191068

983.6

38.22

40A-3

200-3

63.500

39.68

37.85

19.85

223.4

230.4

60.00

8.00

71.55

1061.4/241227

1217.8

49.03

48A-3

240-3

76.200

47.63

47.35

23.81

271.3

278.6

72.39

9.50

87.83

1530.9/347932

1756.5

71.60

Bush chain: d1 in the table indicates the extermal diameter of the bush
