Short pitch precision roller chains ( A series ) 2

Short pitch precision roller chains ( A series ) 2

Hangzhou qianjiang chain industries Co.,Ltd.

0
Views: 213

Product Details

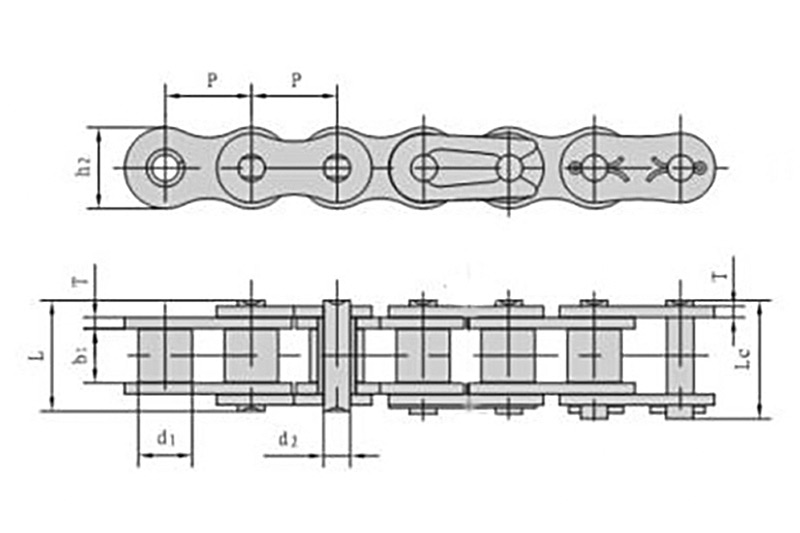

DIN/ISO Chain No.          ANSI          Chain No. Pith   Roller diameter Width    between          inner          plates Pin     diameter Pin length           inner                    plate          depth     Plate  thickness  Transverse   pitch Ultimate    tensile       strength   Average tensile  strength    Weight   per     meter
P d1 max b1 min d2 max L max Lc max h2 max T max Pt Q min Q0 q
mm mm mm mm mm mm mm mm mm kN/lbf kN kg/m
04C-2 25-2 6.350 3.30 3.18 2.31 14.5 15.0 6.00 0.80 6.40 7.00/1591 8.6 0.28
06C-2 35-2 9.525 5.08 4.77 3.58 22.5 23.3 9.00 1.30 10.13 15.80/3591 19.7 0.63
085-2 41-2 12.700 7.77 6.25 3.58 25.7 26.9 9.91 1.30 11.95 13.34/3032 16.9 0.81
08A-2 40-2 12.700 7.95 7.85 3.96 30.6 32.0 2.00 1.50 14.38 28.20/6049 35.9 1.12
10A-2 50-2 15.875 10.16 9.40 5.08 38.8 40.7 15.09 2.03  18.1 44.40/10091 58.1 2.00
12A-2 60-2 19.050 11.91 12.57 5.94 48.5 50.6 18.00 2.42 22.7 63.60/14455 82.1 2.92
16A-2 80-2 25.400 15.88 15.75 7.92 62.7 64.3 24.00 3.25 29.29 113.40/25773 141.8 5.15
20A-2 100-2 31.750 19.05 18.90 9.53 76.4 80.5 30.00 4.00 35.76 117.00/40227 219.4 7.80
24A-2 120-2 38.100 22.23 25.22 11.10 95.8 99.7 35.70 4.80 45.44 254.00/57727 314.9 11.70
28A-2 140-2 44.450 25.40 25.22 12.70 103.3 107.9 41.00 5.60 48.27 344.80/78364 427.5 15.14
32A-2 160-2 50.800 28.58 31.55 14.27 123.3 128.1 47.80 6.40 58.65 453.60/103091 562.4 20.14
36A-2 180-2 57.150 35.71 35.48 17.46 138.6 144.4 53.60 7.20 65.84 560.50/127386 695.0 29.22
40A-2 200-2 63.500 39.68 37.85 19.85 151.9 15.8.8 60.00 8.00 71.55 707.60/160818 877.4 32.24
48A-2 240-2 76.200 47.63 47.35 23.81 183.4 190.8 72.39 9.50 87.83 1020.60/213955 1255.3 45.23

Bush chain: d1 in the table indicates the extermal diameter of the bush
