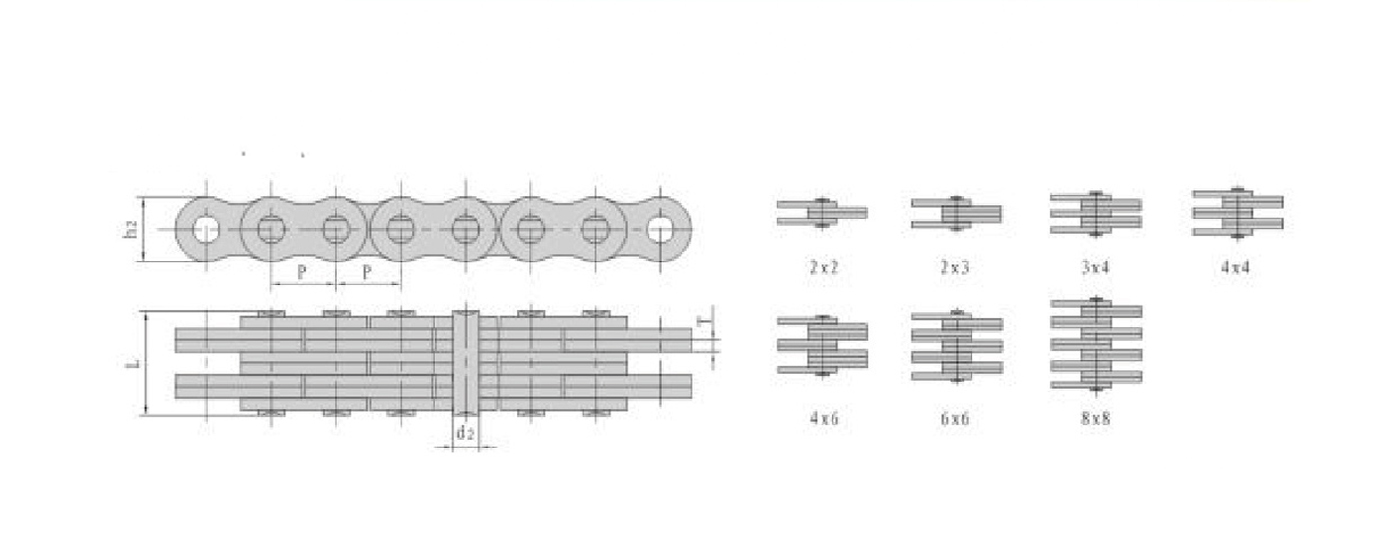

ISO Chain No. | ANSI Chain No. | Pith | Plate lacing | plate depth | Plate thickness | Pin diameter | Pin length | Ultimate tensile strength | Average tensile strength | Weight per meter |
P | h2 max | T max | d2 max | L max | Q min | Q0 | q | |||
mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | |||
LH2022 | BL1022 | 31.75 | 2x2 | 30.18 | 4.90 | 11.11 | 25.37 | 115.6/26272 | 150.8 | 3.40 |
LH2023 | BL1023 | 2x3 | 30.33 | 115.6/26272 | 150.8 | 4.30 | ||||
LH2034 | BL1034 | 3x4 | 40.23 | 182.4/41454 | 231.6 | 6.00 | ||||
LH2044 | BL1044 | 4x4 | 45.19 | 231.3/52568 | 291.4 | 6.90 | ||||
LH2046 | BL1046 | 4x6 | 55.09 | 231.3/52568 | 291.4 | 8.60 | ||||
LH2066 | BL1066 | 6x6 | 65.00 | 347.0/78863 | 430.4 | 10.30 | ||||
LH2088 | BL1088 | 8x8 | 84.81 | 462.6/105136 | 555.1 | 13.80 | ||||
LH2422 | BL1222 | 38.10 | 2x2 | 36.20 | 5.77 | 12.71 | 29.62 | 151.2/34363 | 192.0 | 4.60 |
LH2423 | BL1223 | 2x3 | 35.43 | 151.2/34363 | 192.0 | 5.80 | ||||
LH2434 | BL1234 | 3x4 | 47.07 | 244.6/55591 | 315.9 | 8.10 | ||||
LH2444 | BL1244 | 4x4 | 52.88 | 302.5/68750 | 381.1 | 9.30 | ||||
LH2446 | BL1246 | 4x6 | 64.52 | 302.5/68750 | 381.1 | 11.60 | ||||
LH2466 | BL1266 | 6x6 | 76.15 | 453.7/103113 | 543.6 | 13.90 | ||||
LH2488 | BL1288 | 8x8 | 99.42 | 605.0/137500 | 726.0 | 18.60 | ||||
LH2822 | BL1422 | 44.45 | 2x2 | 42.24 | 6.55 | 14.29 | 33.55 | 191.3/43477 | 225.7 | 6.10 |
LH2823 | BL1423 | 2x3 | 40.16 | 191.3/43477 | 225.7 | 7.60 | ||||
LH2834 | BL1434 | 3x4 | 53.37 | 315.8/71772 | 372.6 | 10.60 | ||||
LH2844 | BL1444 | 4x4 | 59.97 | 382.6/86954 | 451.2 | 12.20 | ||||
LH2846 | BL1446 | 4x6 | 73.18 | 382.6/86954 | 451.2 | 15.20 | ||||
LH2866 | BL1466 | 6x6 | 86.39 | 578.3/131431 | 682.4 | 18.20 | ||||
LH2888 | BL1488 | 8x8 | 112.80 | 765.1/173886 | 902.8 | 24.30 |
Bush chain: d1 in the table indicates the extermal diameter of the bush
