Roller chains with straight side plate ( B series ) 3

Roller chains with straight side plate ( B series ) 3

Hangzhou qianjiang chain industries Co.,Ltd.

0
Views: 1,740

Product Details

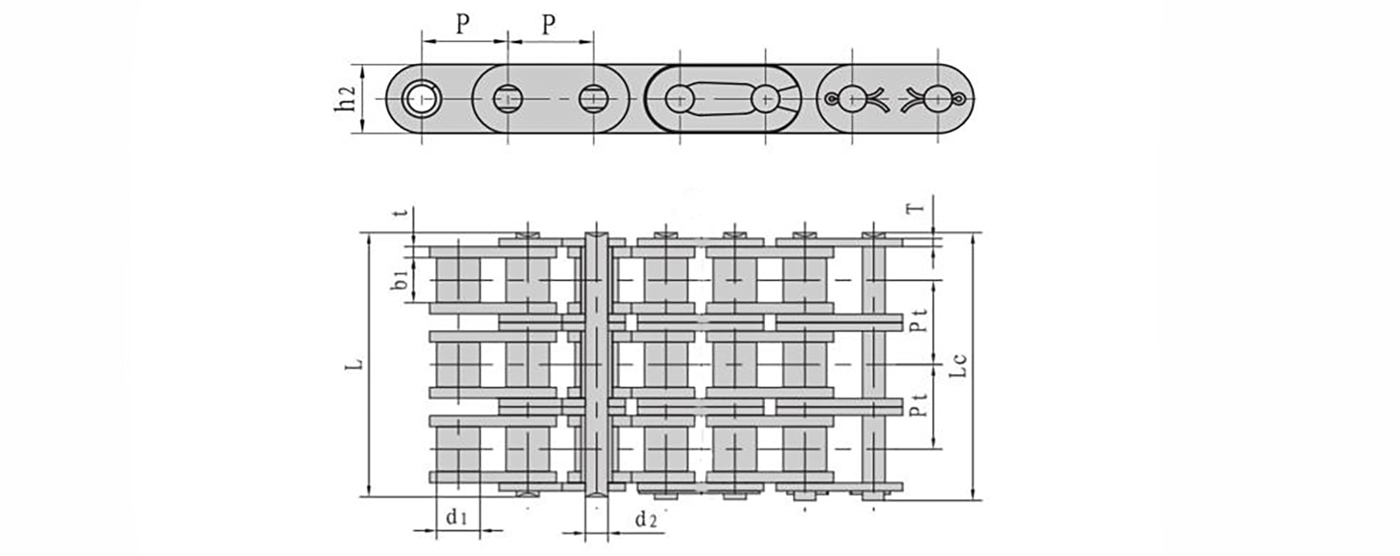

  DIN/ISO   Chain NO. Pith   Roller diameter      Width             between       inner      plates      Pin       diameter Pin length   inner       plate       depth        Plate     thickness  Transverse     pitch Ultimate    tensile       strength   Average  tensile  strength  Weight       per           meter
P d1 max b1 min d2 max L max Lc max h2 max T max Pt Q min Q0 q
mm mm mm mm mm mm mm mm mm kN/lbf kN kg/m
C08B-3 12.700  8.51  7.75  4.45  45.1  46.1  11.8  1.60  13.92 47.5/10795 57.8 2.10
C10B-3 15.875  10.16  9.65  5.08  52.7  54.1  14.7  1.70  16.59 66.7/15159 84.5 2.87
C12B-3 19.050  12.07  11.66  5.72  61.5  64.2  16.0  1.85  19.46 86.7/19705 101.8 3.89
C16B-3 25.400  15.88  17.02  8.28 99.8  102.9  21.0/24.0 4.15/3.1 31.88 160.0/36364 203.7 9.12/10.34
C20B-3 31.750  19.05  19.56  10.19  114.2  117.9  26.4  4.5/3.5 36.45 250.0/56818 290.0 11.34
C24B-3 38.100  25.40  25.40  14.63  150.1  154.6  33.2  6.0/4.85 48.36 425.0/96591 493.0 22.10
C28B-3 44.450  27.94  30.99  15.90  184.2  188.7 36.7  7.5/6.0 59.56 530.0/120454 609.5 29.64
C32B-3 50.800  29.21  30.99  17.81 183.2  188.2  42.0  7.0/6.0 58.55 670.0/152273 770.5 31.27
