Automobile engine timing chains

Automobile engine timing chains

Automobile engine timing chains

Hangzhou qianjiang chain industries Co.,Ltd.

0
Views: 1,176
E-mail:[email protected] Phone:+86-13805752016

Product Details

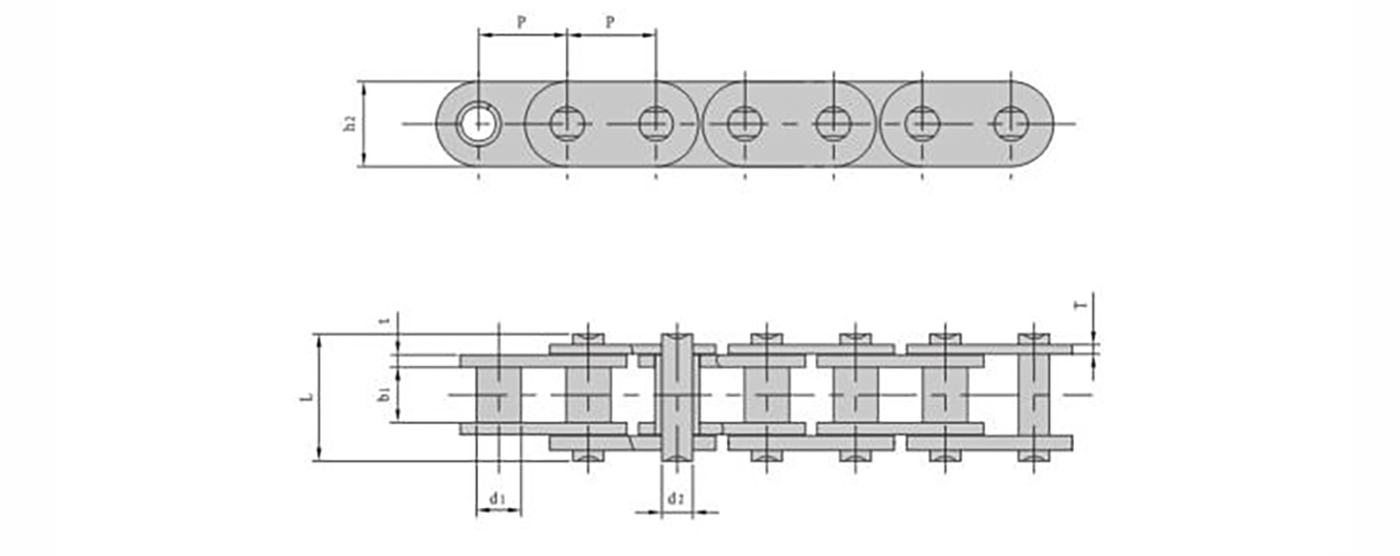

      DIN/ISO         Chain No. Pith     Roller     diameter          Width                 between                    inner            plates    Pin       diameter Pin length          inner                      plate             depth     Plate     thickness       Ultimate           tensile       strength        Average             tensile         strength        Weight                    per                meter
P d1 max b1 min d2 max L max h2 max T max  Qmin  Q0 q
mm mm mm mm mm mm mm kN/lbf kN kg/m
C25H 6.350  3.30  3.18 2.31 8.9 6.0  1.04 4.8/1091 5.5  0.17
05CT 8.000  5.00  4.76 3.15 11.6 7.7  1.30/1.04 8.5/1932 9.8  0.36
06BT 9.525  6.35  5.72 3.28 12.5 8.2  1.30/1.04 9.0/2045 10.0  0.39
