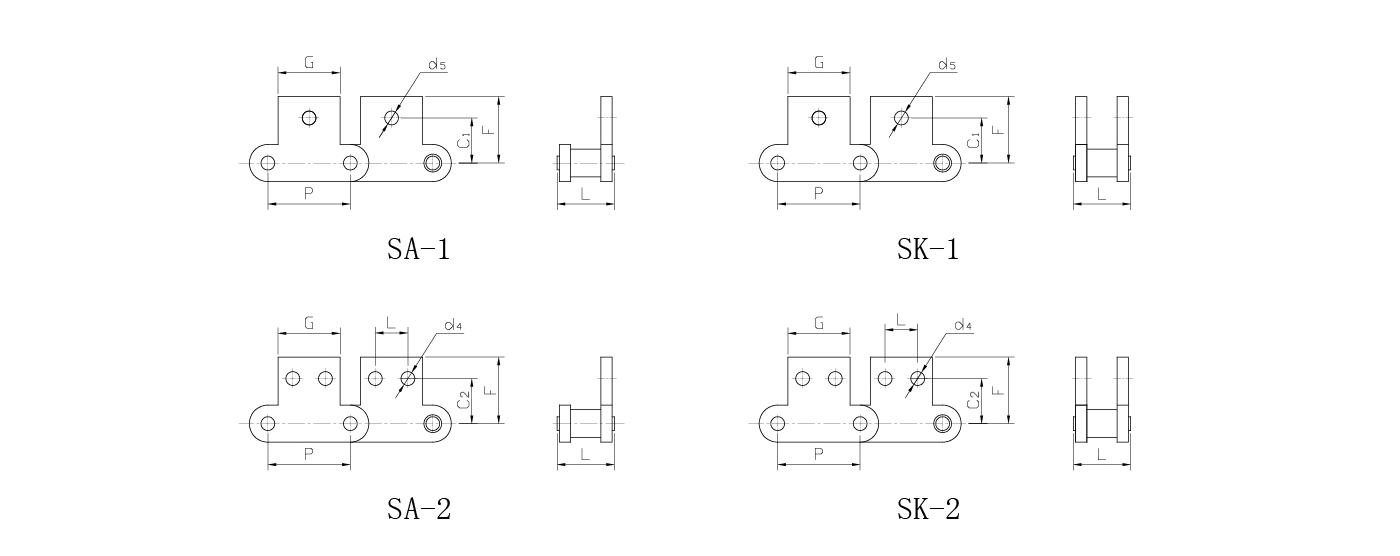

Qianjiang Chain No. | ANSI Chain No. | P | L | C1 | C2 | F | d4 | d5 | |
mm | mm | mm | mm | mm | mm | mm | |||
C208A | C2040 | 25.40 | 19.1 | 9.5 | 11.1 | 13.5 | 20.5 | 3.4 | 5.5 |
C208L | C2042 | ||||||||
C208B | 25.40 | 23.2 | 12.7 | 11.1 | 13.5 | 20.5 | 4.5 | 5.5 | |
C208BL | |||||||||
C210A | C2050 | 31.75 | 23.8 | 11.9 | 14.3 | 15.9 | 25.0 | 5.5 | 6.6 |
C210AL | C2052 | ||||||||
C212A | C2060 | 38.10 | 28.6 | 14.3 | 17.5 | 19.1 | 32.9 | 5.5 | 9.2 |
C212AL | C2062 | ||||||||
C212AH | C2060H | 38.10 | 28.6 | 14.3 | 17.5 | 19.1 | 32.9 | 5.5 | 9.2 |
C212AHL | C2062H | ||||||||
C216A | C2080 | 50.80 | 38.1 | 19.1 | 22.2 | 25.4 | 43.5 | 6.8 | 11.0 |
C216AL | C2082 | ||||||||
C216AH | C2080H | 50.80 | 38.1 | 19.1 | 22.2 | 25.4 | 43.5 | 6.8 | 11.0 |
C216AHL | C2082H | ||||||||
C220A | C2100 | 63.50 | 47.6 | 23.8 | 28.6 | 31.8 | 50.4 | 8.4 | 13.0 |
C220AL | C2102 | ||||||||
C220AH | C2100H | 63.50 | 47.6 | 23.8 | 28.6 | 31.8 | 50.4 | 8.4 | 13.0 |
C220AHL | C2102H |
Bush chain: d1 in the table indicates the extermal diameter of the bush
