Anti-sidebow chains for automatic doors and windows

Anti-sidebow chains for automatic doors and windows

Hangzhou qianjiang chain industries Co.,Ltd.

0
Views: 190

Product Details

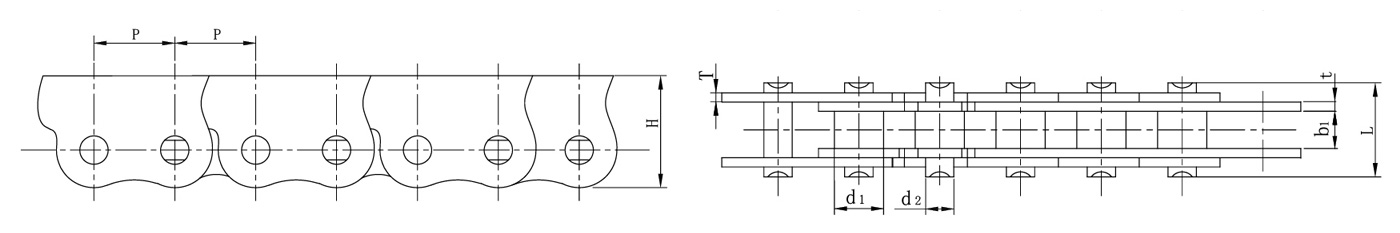

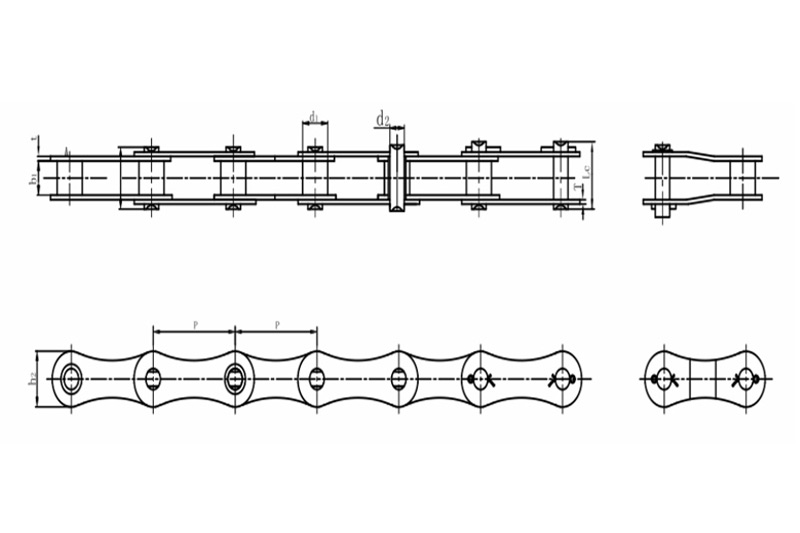

Qianjiang  Chain No. Pith              Roller             diameter            Width                      between                     inner             plates           Pin             diameter Pin length   Plate    dinmension                 Ultimate                                    tensile                   strength
P d1 max b1 min d2 max L max H t/T Q min
mm mm mm mm mm mm mm kN/lbf
ASA35-G 9.525 5.08 2.27  3.58 9.20  13.1  1.3 5.0
ASA35 9.525 5.08 4.67  3.58 11.50  13.1  1.3 5.2
ASA35-H 9.525 5.08 4.67  3.58 13.20  13.1  2.0/1.3 5.9
ASA40 12.70  7.90 7.85  3.96 16.30  16.2  1.5 12.0
ASA40-T 12.70  6.12 4.90  3.96 13.85  15.0  1.5 12.0

The anti-sidebow chains for automatic doors and windows we made according to the demands of supporting products, and use the two production processes of stainless steel and carbon steel materials. Since 5 years, we have provided our products and service to some domestic and european OEMs.
