How to Measure Roller Chain & Identify Chain Grade

Update:12-03-2026
Posted by Admin

To measure roller chain size, you need three dimensions: pitch (the distance between link centers), roller diameter, and inner link width (the space between the inner plates). Pitch is the most important — it is the number used to identify most standard chain sizes. For a #40 chain, pitch is exactly 1/2 inch (12.70 mm); for #50 chain, pitch is 5/8 inch (15.875 mm). To identify chain grade, look for stamped markings on the side plates — standard ANSI chain carries no special mark, while higher-grade chains are stamped with letters or symbols indicating their specification. This guide covers exactly how to take each measurement, what tools to use, and how to decode chain markings to confirm grade and size.

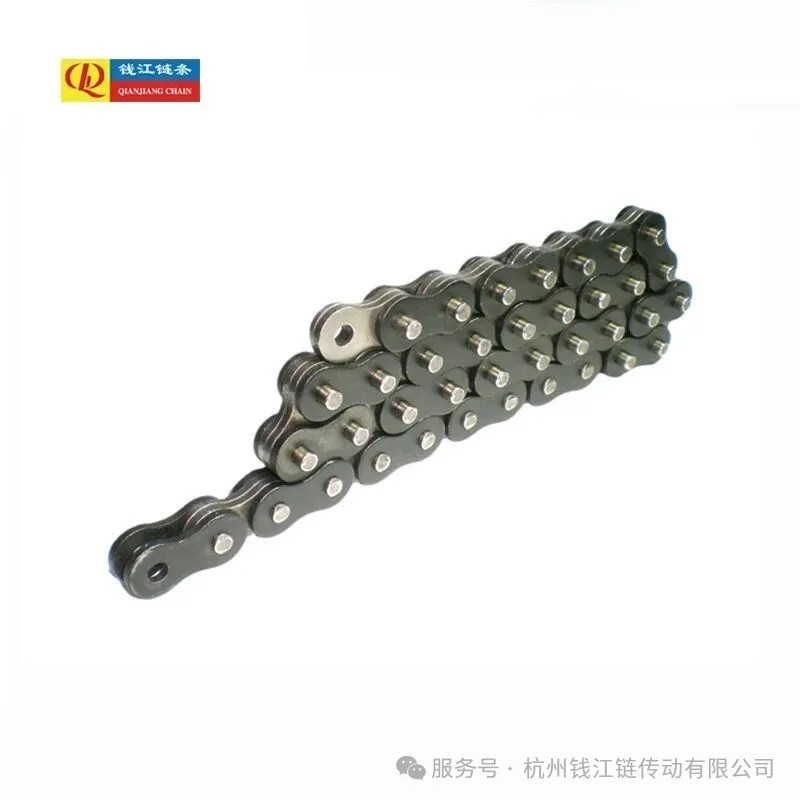

The Three Dimensions That Define Roller Chain Size

Every roller chain is fully described by three measurements. Understanding what each dimension means and where to measure it prevents the most common sourcing errors — ordering chain with the correct pitch but the wrong width, or buying chain that fits the sprocket but is too narrow for the application's load requirement.

Pitch: The Primary Size Identifier

Pitch is the distance between the centers of two adjacent pins — or equivalently, the distance between the centers of two adjacent rollers. It is measured along the chain's length axis and is the defining dimension of the chain size number in the ANSI/ASME B29.1 standard. In ANSI chain numbering, the first one or two digits of the chain number indicate the pitch in eighths of an inch. Chain #40 has a pitch of 4/8 inch = 1/2 inch. Chain #60 has a pitch of 6/8 inch = 3/4 inch. Chain #80 has a pitch of 8/8 inch = 1 inch.

To measure pitch accurately, do not measure across a single link — minor manufacturing variation at one pin can introduce error. Instead, measure across 10 links (from pin center to pin center at the 1st and 11th pins), then divide by 10. This averaging method produces a measurement accurate to within ±0.01 mm on most calipers, which is sufficient to identify standard chain sizes that differ by 3.175 mm (1/8 inch) between consecutive ANSI sizes.

Roller Diameter

The roller is the cylindrical element that contacts the sprocket tooth and rolls along the tooth flank during engagement, distributing load and reducing wear. Roller diameter is measured across the outside of the roller at its widest point using a caliper. For ANSI standard chain, roller diameter is standardized relative to pitch — for #40 chain, roller diameter is 0.312 inch (7.92 mm); for #80 chain, it is 0.625 inch (15.88 mm). If your measured roller diameter does not match the ANSI standard for the pitch you measured, the chain may be a non-standard or metric ISO chain that requires different identification.

Inner Link Width (Between Inner Plates)

Inner link width is the usable width between the inner plates — the space that must accommodate the sprocket tooth width. This dimension determines which sprocket the chain will fit and influences the chain's lateral stability and load distribution. For ANSI standard chains, inner width is also standardized: #40 chain has 5/16 inch (7.94 mm) inner width; #80 chain has 1/2 inch (12.70 mm). Measure inner width by placing caliper jaws inside the inner link plates and measuring the clear space between them. This is distinct from the outer plate width, which is larger and not used for sprocket matching.

How to Measure Roller Chain Step by Step

Follow this sequence to accurately determine your roller chain size. A digital vernier caliper with 0.01 mm resolution is sufficient for all measurements. A steel ruler can measure pitch at the 10-link span if a caliper is not available, but a caliper is strongly preferred for roller diameter and inner width.

  1. Lay the chain flat and under slight tension: Slack in the chain introduces positional error in pin location measurements. Lay the chain on a flat surface and apply light hand tension along the length axis before measuring.
  2. Measure pitch across 10 links: Position one caliper jaw at the center of pin 1 and the other at the center of pin 11 (counting 10 link spacings). Record the measurement and divide by 10. Compare to the pitch reference table below.
  3. Measure roller diameter: Open the caliper jaws and measure across the outer diameter of a roller at its midpoint. Ensure the jaws are perpendicular to the roller axis — any angle understates the true diameter. Take three measurements at different rollers and average them.
  4. Measure inner link width: Place the caliper's inside-measurement jaws (the smaller jaws at the top of most calipers) between the two inner plates of one inner link. Measure the clear space, not including the plate thickness on either side.
  5. Cross-reference your three measurements against the standard chain size table to confirm the ANSI or ISO chain number. If all three dimensions match a standard size, you have your chain number. If they do not match, measure again and check whether the chain is a double-pitch, heavy series, or metric standard variant.

Standard ANSI Roller Chain Dimensions Reference

Table 1: ANSI standard roller chain sizes with pitch, roller diameter, and inner width dimensions
Chain No. Pitch (in) Pitch (mm) Roller Dia. (mm) Inner Width (mm)
#25 1/4 6.350 3.30 3.18
#35 3/8 9.525 5.08 4.78
#40 1/2 12.700 7.92 7.85
#50 5/8 15.875 10.16 9.40
#60 3/4 19.050 11.91 12.57
#80 1 25.400 15.88 15.75
#100 1-1/4 31.750 19.05 18.90
#120 1-1/2 38.100 22.23 25.22

How to Determine Chain Link Size: Inner vs. Outer Links

Roller chain alternates between two link types: inner links (which carry the rollers and have inner plates) and outer links (which have outer plates connecting adjacent inner links via pins). Understanding this alternating structure is important when measuring because the inner and outer plates have different widths, and measuring the wrong one gives a misleading result.

  • Inner link: The inner plates are narrower (inner plate width) and sandwich the roller between them. The gap between the inner plates is the inner link width — the critical dimension for sprocket tooth fit. Inner plates sit between the outer plates when assembled.
  • Outer link: The outer plates are wider, enclosing the inner plates and connecting to adjacent links through the pins. The overall width across the outer plates is the chain's total width — relevant for clearance calculations but not for sprocket matching.
  • Connecting link (master link): A special outer link with a removable clip or cotter pin on one side, used to join chain ends. Identical in all dimensions to a standard outer link. Look for the spring clip or cotter pin to identify it.
  • Offset link (half link): Used to add a single pitch to a chain that needs an odd number of links. Combines one inner plate and one outer plate in a single link. Using offset links slightly reduces the chain's rated tensile strength and should be minimized in high-load applications.

How to Identify Chain Grade from Markings and Visual Inspection

Chain grade defines the quality level, tensile strength, and intended application of the chain relative to its size. Two chains with identical physical dimensions — same pitch, same roller diameter, same inner width — can have significantly different load capacities and service lives depending on their grade. Identifying grade correctly prevents substituting a lower-grade chain in a higher-load application, which is a common cause of unexpected chain failure.

Reading Side Plate Stampings

Manufacturers stamp grade and specification information on the outer side plates of roller chain, typically on every outer link or at regular intervals along the chain. The marking may include the chain number, the manufacturer's brand, and a grade or specification letter. Look at the flat face of the outer plates under good lighting — hold the chain so it reflects light at an angle to make stamped characters more visible. On worn or dirty chains, cleaning the side plates with a wire brush or solvent before inspection significantly improves marking legibility.

ANSI Chain Grade Markings

  • Standard ANSI chain (no letter suffix): Chain number only stamped on the plate (e.g., "40", "60", "80"). Meets ANSI/ASME B29.1 minimum requirements for that size. This is the baseline commercial grade used in most general industrial applications.
  • Heavy series (suffix "H"): Marked with an H after the chain number (e.g., "40H", "60H"). Heavy series chains have thicker side plates than standard, providing 20–30% higher tensile strength at the same pitch. The thicker plates also make them slightly wider — verify sprocket clearance before substituting heavy series for standard.
  • Double-pitch chain (prefix "2" or "C"): Marked "2040", "2050", or "C2040" etc. Double-pitch chains have the same roller diameter and inner width as standard ANSI chains of the same base number, but exactly double the pitch. They are used for slow-speed conveyor applications where long chain length at low cost is more important than power transmission density.
  • Stainless steel: Marked "SS" or with the stainless grade designation alongside the chain number (e.g., "40SS", "40-SS316"). Stainless chains meet the same dimensional standards as carbon steel equivalents but have lower tensile strength — typically 60–75% of equivalent carbon steel chain — due to the lower ultimate tensile strength of austenitic stainless alloys.
  • Nickel-plated or zinc-plated: May be marked "NP" or "ZP". These are standard chains with a corrosion-protective surface treatment. Identical dimensions and strength to unplated equivalents, but the plating may fill tight clearances — verify fit if replacing an unplated chain in a precision mechanism.

ISO Metric Chain Markings (European Standard)

ISO 606 metric chains use a different numbering system. The chain number indicates pitch in millimeters followed by a letter indicating the series: B for European (ISO) standard, A for American (ANSI-equivalent) dimensions. For example, 08B is an ISO chain with 12.70 mm pitch (equivalent pitch to ANSI #40, but with different roller diameter and inner width), while 12B has 19.05 mm pitch (equivalent to ANSI #60 pitch). If your measured pitch is a round metric number (e.g., 15.88 mm, 19.05 mm, 25.40 mm) but the chain does not match ANSI dimensions, it is likely an ISO B-series chain requiring ISO-standard sprockets.

Table 2: Common chain grade markings, their meaning, and strength characteristics
Marking / Suffix Grade / Type Strength vs. Standard Typical Application
Number only (e.g., "40") Standard ANSI Baseline (100%) General industrial, agriculture
"H" suffix (e.g., "40H") Heavy series ~125–130% Heavy conveyor, high shock load
"2" prefix (e.g., "2040") Double pitch ~80% (longer pitch) Slow conveyor, packaging
"SS" suffix Stainless steel ~60–75% Food, chemical, washdown
"NP" / "ZP" suffix Plated carbon steel ~100% Mild corrosion environments
"LF" / "NLF" suffix Lube-free / self-lubricating ~85–95% Food, clean room, no-lube zones

Identifying Chain by Visual Inspection When Markings Are Missing

On heavily used or corroded chain, side plate stampings may be illegible. In these cases, physical measurement is the only reliable identification method. However, several visual clues can help narrow down the chain type before you reach for a caliper.

  • Plate color and finish: Bare carbon steel chain appears silver-gray when new and develops a brownish patina with use. Stainless chain remains bright silver. Nickel-plated chain has a distinctly shinier, more reflective appearance than bare steel. Black oxide chain appears dark gray-black. These colors survive wear better than stampings in many cases.
  • Plate thickness relative to width: Heavy series chain has noticeably thicker plates relative to their height compared to standard series. If the plates appear unusually beefy for the roller size, suspect heavy series and measure plate thickness (standard vs. heavy series plate thickness differs by approximately 15–25% for common ANSI sizes).
  • Pin protrusion and peening: On standard ANSI chains, pin ends are visible beyond the outer plate and typically peened or headed over. On some higher-grade chains, the pin ends are flush with the outer plate or have specific peening patterns — this alone is not conclusive for grade identification but indicates manufacturer quality practice.
  • O-ring or X-ring presence: Some motorcycle and industrial chains use elastomeric rings between the inner and outer plates to seal lubricant inside the pin-bushing joint. The presence of these rings (visible as rubber seals at each pin location) indicates a premium sealed-chain design regardless of any grade markings.

Checking for Chain Wear: When Measurement Reveals Stretch

Measuring chain pitch is also the correct method for evaluating wear elongation — the gradual lengthening of chain pitch that occurs as the pin-to-bushing bearing surfaces wear. A chain that measures longer than its nominal pitch across multiple links is worn and should be replaced regardless of whether it has reached any visual damage threshold.

The standard wear measurement method uses the same 10-link span measurement described above. A new chain's 10-link span will measure exactly 10× the nominal pitch. When that span exceeds the nominal by more than 1.5–2%, the chain should be replaced to avoid accelerated sprocket wear and risk of jumping teeth. For a #40 chain with nominal 10-link span of 127.00 mm, replacement is indicated when the 10-link span exceeds approximately 129.0–129.5 mm.

Table 3: Maximum allowable 10-link span at 2% wear elongation for common ANSI chain sizes
Chain No. Nominal 10-Link Span (mm) Replace at (mm) Max Elongation (mm)
#35 95.25 97.16 1.91
#40 127.00 129.54 2.54
#50 158.75 161.93 3.18
#60 190.50 194.31 3.81
#80 254.00 259.08 5.08

Common Measurement Mistakes and How to Avoid Them

Even with the correct tools, several common errors lead to wrong chain identification or incorrect wear assessment. Being aware of these pitfalls prevents ordering the wrong replacement chain.

  • Measuring across only one link pitch: Single-link pitch measurement has too much error for reliable chain identification. Always use the 10-link span method and divide by 10 for an accurate average pitch value.
  • Measuring a worn chain to identify the original size: A chain that has been in service will have elongated pitch. If you measure a used chain to determine the replacement part number, apply the knowledge that the measured pitch will be slightly longer than nominal. A measured 10-link span of 128.5 mm on a #40 chain does not mean the chain is a non-standard size — it means the chain is 1.2% worn and the correct replacement is still standard #40.
  • Confusing inner width with outer plate width: Measuring the total width across the outer plates instead of the clear space between inner plates gives a larger number that does not correspond to any standard inner width specification. Always measure the inner gap specifically.
  • Assuming ANSI and ISO chains with similar pitch are interchangeable: ANSI #60 and ISO 12B both have 19.05 mm pitch, but their roller diameter, inner width, and plate dimensions differ — they are not interchangeable and require different sprockets. Identify which standard applies before ordering replacements.
  • Ignoring the strand count: Multi-strand chains (duplex, triplex) have the same pitch and individual strand dimensions as equivalent single-strand chains but are physically wider. A chain marked "2040" is a double-pitch single-strand chain; a chain marked "40-2" or "duplex 40" is a double-strand chain with standard pitch. These are entirely different products despite similar nomenclature.
